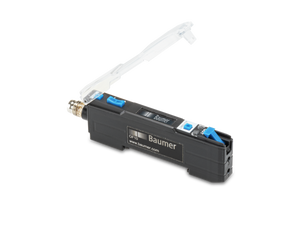

Baumer OF10.FR-GW2J.B2CV/A014 is an IO-Link dual channel sensor equipped with a pulsed red LED light source and an OLED display for indicators. It features adjustable response times ranging from 0.05 ms in Ultra High Speed Mode to 16 ms in Ultra Long Range Mode, and operates on a voltage supply range of 8 to 30 VDC. The sensor offers multiple modes including light/dark operation switchable, and is designed with a rectangular polycarbonate housing measuring 10 mm in width, 27.8 mm in height, and 82.3 mm in depth. It includes a 4-pin, 2-meter cable for connections and operates within a temperature range of 5 to +55 °C. The device is protected against short circuits and reverse polarity, supports a maximum output current of 150 mA, and is rated IP 50 for protection.
- Version:
- IO-Link dual channel
- Light source:
- Pulsed red LED
- Light indicator:
- OLED display
- Output indicator:
- LED red
- Adjustment:
- Teach-in and IO-Link
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- 0.05 ms (Ultra High Speed Mode) 0.125 ms (High Speed Mode) 0.25 ms (Standard Mode) 1 ms (High Resolution Mode) 4 ms (Long Range Mode) 16 ms (Ultra Long Range Mode)
- Voltage supply range +Vs:
- 8 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate switchable
- On / off delay:
- 0.1 9999 ms
- Output circuit:
- IO-Link / push-pull
- Output current:
- 150 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10 mm
- Height / length:
- 27.8 mm
- Depth:
- 82.3 mm
- Design:
- Rectangular
- Housing material:
- Polycarbonate
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- 5 +55 °C
- Protection class:
- IP 50
