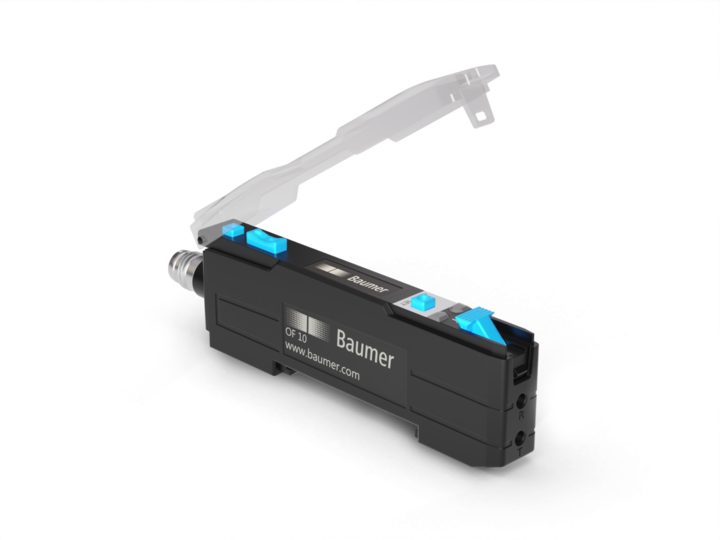

The Baumer OF10.FR-PW1B.B2N 11224111 is a high-performance sensor equipped with a pulsed red LED light source and an OLED display for indicators. It features multiple response times ranging from 0.05 ms in Ultra High Speed Mode to 16 ms in Ultra Long Range Mode, catering to various application needs. The sensor offers a teach-in adjustment via button or external input and operates with a voltage supply range of 8 to 30 VDC. It has a maximum current consumption of 50 mA and a typical consumption of 30 mA. The output function can switch between light and dark operate, and it includes a PNP output circuit with a maximum output current of 150 mA. The device is designed with short circuit and reverse polarity protection, ensuring durability and reliability. Its compact, rectangular polycarbonate housing measures 10 mm in width, 27.8 mm in height, and 93.1 mm in depth, and it connects via an M8 4-pin connector. Suitable for operating temperatures from 5 to +55 °C, the sensor is rated at IP 50, indicating a level of protection against dust.
- Light source:
- Pulsed red LED
- Light indicator:
- OLED display
- Output indicator:
- LED red
- Adjustment:
- Teach-in: button / external
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- 0.05 ms (Ultra High Speed Mode) 0.125 ms (High Speed Mode) 0.25 ms (Standard Mode) 1 ms (High Resolution Mode) 4 ms (Long Range Mode) 16 ms (Ultra Long Range Mode)
- Voltage supply range +Vs:
- 8 30 VDC
- Current consumption max. (no load):
- 50 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate switchable
- On / off delay:
- 0.1 9999 ms
- Output circuit:
- PNP
- Output current:
- 150 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10 mm
- Height / length:
- 27.8 mm
- Depth:
- 93.1 mm
- Design:
- Rectangular
- Housing material:
- Polycarbonate
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- 5 +55 °C
- Protection class:
- IP 50
