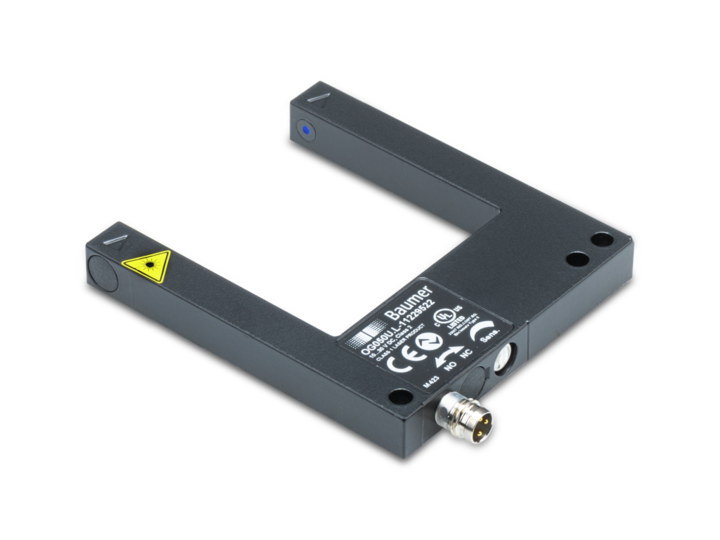

Baumer OG050U.L-GW1O.7WL
Baumer
$689.00
The Baumer OG050U.L-GW1O.7WL is a high-performance through beam sensor designed for precise object detection with a minimum size of 0.1 mm. It features a pulsed red laser diode light source with a wavelength of 670 nm and is classified as a safe Laser class 1 device. The sensor offers exceptional repeat accuracy of 0.01 mm and a rapid response time of less than 0.1 ms, ensuring quick and reliable operation. It includes a sensitivity adjustment via a 270° potentiometer and supports multiple switching frequencies up to 10,000 Hz for versatile application needs. This sensor is equipped with both light and dark operate switching capabilities and a push-pull / IO-Link output circuit, enhancing its flexibility in integration with various systems. It operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 30 mA when idle. The unit is built to last with die-cast zinc housing, measures 70 mm in width, 80 mm in height, and has a fork width of 50 mm. It also features short circuit and reverse polarity protection, ensuring durability and reliability in challenging conditions. The Baumer OG050U.L-GW1O.7WL operates effectively in temperatures ranging from -25 to +60 °C and is IP 67 rated, making it suitable for use in harsh environments. Connection is facilitated via a 3-pin M8 connector, allowing for easy installation and maintenance. This sensor is an ideal choice for applications requiring high accuracy and fast response times in industrial settings.
- Type:
- Through beam sensor
- Object size:
- > 0.1 mm
- Repeat accuracy:
- 0.01 mm
- Response time / release time:
- < 0.1 ms
- Hysteresis:
- < 0.05 mm
- Sensitivity adjustment:
- Potentiometer, 270° IO-Link
- Light source:
- Pulsed red laser diode
- Wave length:
- 670 nm
- Laser class:
- 1
- Light indicator:
- LED yellow
- Switching frequency:
- 5000 Hz , default 2000 Hz 1000 Hz 10000 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output function:
- Light / dark operate switchable
- Output circuit:
- Push-pull / IO-Link
- Voltage drop Vd:
- <2.8 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 70 mm
- Fork width Sb:
- 50 mm
- Height / length:
- 80 mm
- Penetration depth:
- 55 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Die-cast zinc
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View
