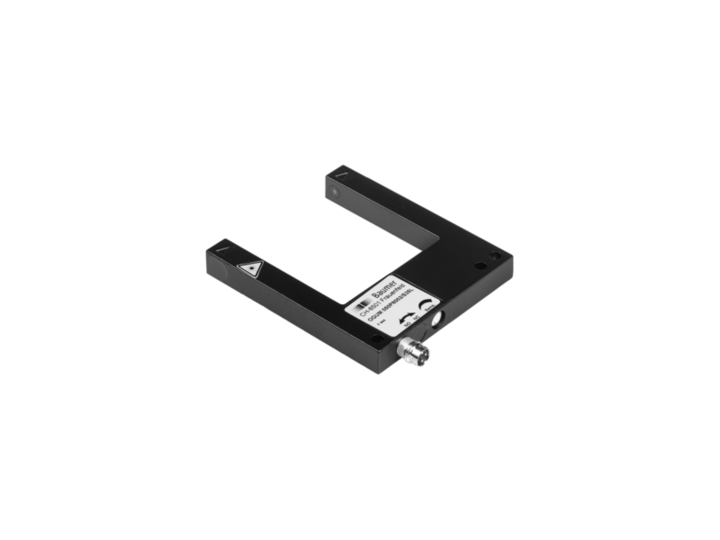

Baumer OG050U.L-NW1P.7WL
Baumer
$689.00
The Baumer OG050U.L-NW1P.7WL is a through beam sensor equipped with a pulsed red laser diode, featuring a wavelength of 670 nm and classified as laser class 1. It is designed to detect objects as small as 0.1 mm with a repeat accuracy of 0.02 mm and a response time of less than 0.1 ms. The sensor offers adjustable sensitivity via a 270° potentiometer and includes IO-Link technology for enhanced connectivity. It operates with a switching frequency that can be set to 2000 Hz, 5000 Hz, 10000 Hz, or a default of 5000 Hz. The unit is powered by a 10 to 30 VDC supply, consumes a maximum of 30 mA with no load, and supports both light and dark operating modes switchable via its output function. The output circuit is NPN with a maximum output current of 200 mA, and it features short circuit and reverse polarity protection. The sensor's robust U-profile design is made from die-cast zinc, measures 70 mm in width, 80 mm in height, and 10 mm in depth, with a fork width of 50 mm and a penetration depth of 55 mm. It includes a connector M8, 3-pin for connections, operates within a temperature range of -25 to +60 °C, and is rated IP 67 for protection against dust and water ingress. An LED yellow light indicator provides status visibility.
- Type:
- Through beam sensor
- Object size:
- > 0.1 mm
- Repeat accuracy:
- 0.02 mm
- Response time / release time:
- < 0.1 ms
- Hysteresis:
- < 0.05 mm
- Sensitivity adjustment:
- Potentiometer, 270° IO-Link
- Light source:
- Pulsed red laser diode
- Wave length:
- 670 nm
- Laser class:
- 1
- Light indicator:
- LED yellow
- Switching frequency:
- 5000 Hz , default 2000 Hz 1000 Hz 10000 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output function:
- Light / dark operate switchable
- Output circuit:
- NPN
- Voltage drop Vd:
- <2.8 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 70 mm
- Fork width Sb:
- 50 mm
- Height / length:
- 80 mm
- Penetration depth:
- 55 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Die-cast zinc
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
