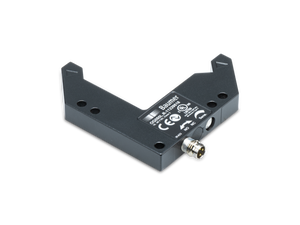

The Baumer OG050U.R-GW1O.7WL is a through beam sensor designed for precise object detection with a minimum size capability of 0.5 mm and repeat accuracy of 0.04 mm. It features a fast response and release time of less than 0.1 ms and a hysteresis of less than 0.25 mm. The sensor is equipped with a potentiometer for sensitivity adjustment over a 270° range and supports IO-Link communication. It utilizes a pulsed red LED light source with a wavelength of 660 nm and includes a yellow LED light indicator. The switching frequency can be set to 5000 Hz, with options for 1500 Hz, 250 Hz, and 8000 Hz. It operates on a voltage supply range of 10 to 30 VDC and consumes a maximum of 30 mA with no load. The output function is switchable between light and dark operate modes, and it features a push-pull / IO-Link output circuit with a voltage drop of less than 2.8 VDC and an output current of 200 mA. The sensor includes short circuit and reverse polarity protection. Its U-profile design is made from die-cast zinc, measuring 70 mm in width, 50 mm in fork width, 80 mm in height/length, 55 mm in penetration depth, and 10 mm in depth. It offers a connector M8, 3-pin connection type and operates within a temperature range of -25 to +60 °C. The sensor is IP 67 rated for protection against dust and water ingress. For more detailed information, refer to the datasheet linked above.
- Type:
- Through beam sensor
- Object size:
- > 0.5 mm
- Repeat accuracy:
- 0.04 mm
- Response time / release time:
- < 0.1 ms
- Hysteresis:
- < 0.25 mm
- Sensitivity adjustment:
- Potentiometer, 270° IO-Link
- Light source:
- Pulsed red LED
- Wave length:
- 660 nm
- Light indicator:
- LED yellow
- Switching frequency:
- 5000 Hz , default 1500 Hz 250 Hz 8000 Hz
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output function:
- Light / dark operate switchable
- Output circuit:
- Push-pull / IO-Link
- Voltage drop Vd:
- <2.8 VDC
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 70 mm
- Fork width Sb:
- 50 mm
- Height / length:
- 80 mm
- Penetration depth:
- 55 mm
- Depth:
- 10 mm
- Design:
- U profile
- Housing material:
- Die-cast zinc
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +60 °C
- Protection class:
- IP 67
