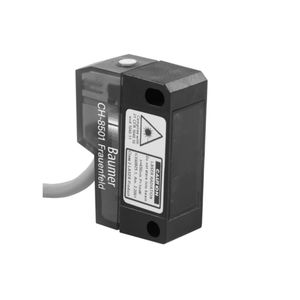

Baumer OHDK 14N5101/S14 11001253 is a background suppression sensor with a sensing distance of 20 to 350 mm and a repeat accuracy of less than 0.2 mm at laser focus. It features a pulsed red laser diode light source, with a laser class of 2 and a wavelength of 650 nm. The sensor has a quick response and release time of less than 0.5 ms, operates on a voltage supply range of 10 to 30 VDC, and has a typical current consumption of 25 mA. It includes both light and dark operating modes, an NPN output circuit, and can handle an output current of 100 mA. The device is equipped with short circuit and reverse polarity protection, and has a mechanical, 9-turn sensing distance adjustment. The sensor's housing is made of plastic (ASA, MABS) with a PMMA front optics, and it connects via an M12 4-pin connector. It is designed in a rectangular shape measuring 14.8 mm in width, 43 mm in height, and 31 mm in depth, and is IP 67 rated for protection against dust and water ingress. The operating temperature range is from -10 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 350 mm
- Sensing range Tb (at Tw max.):
- 20 350 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Repeat accuracy:
- < 0.2 mm at laser focus
- Power on indication:
- LED green
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 9 turn
- Distance to focus:
- 115 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 650 nm
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
