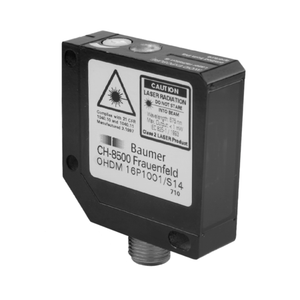

Baumer OHDM 16P5012 10124936
Baumer
$1,617.00
The Baumer OHDM 16P5012 10124936 is a background suppression sensor with a sensing distance ranging from 25 to 300 mm and a repeat accuracy of less than 0.1 mm at laser focus. It features a pulsed red laser diode light source, with a laser class of 2 and a wavelength of 650 nm. The sensor has a fast response and release time of less than 0.1 ms, operates on a voltage supply range of 10 to 30 VDC, and has typical current consumption of 25 mA. It includes both light and dark operating modes, a PNP output circuit, and can handle an output current of up to 200 mA. The device is equipped with short circuit and reverse polarity protection, and has a mechanical, 8-turn sensing distance adjustment. The sensor's housing is made of die-cast zinc with a glass front, and it connects via a 4-pin, 2-meter cable. It is designed in a rectangular shape measuring 15.4 mm in width, 50 mm in height and depth, and is IP 67 rated for protection against dust and water, suitable for operating temperatures from -10 to +50 °C.
- Type:
- Background suppression
- Sensing distance Tw:
- 25 300 mm
- Sensing range Tb (at Tw max.):
- 40 300 mm
- Sensing range Tb (at Tw min.):
- 5 25 mm
- Repeat accuracy:
- < 0.1 mm at laser focus
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 8 turn
- Distance to focus:
- 60 mmLight source=Pulsed red laser diode
- Laser class:
- 2
- Wave length:
- 650 nm
- Response time / release time:
- < 0.1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15.4 mm
- Height / length:
- 50 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Datasheet:
- View
