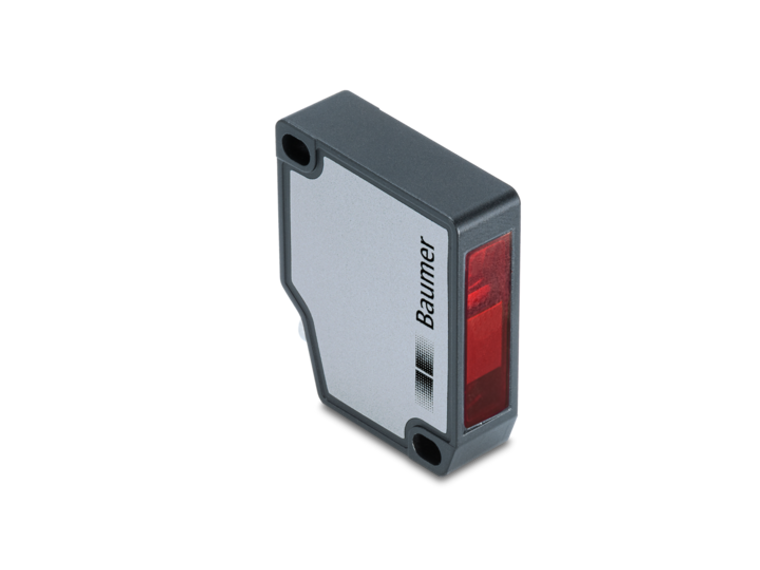

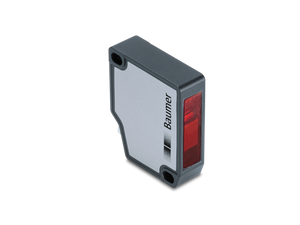

The Baumer OM30-L0550.HV.TXN is a high-precision distance measuring sensor with a range of 50 to 550 mm and a measuring frequency of 5000 Hz. It features a pulsed red laser diode with a wavelength of 660 nm and a laser class of 2. The device offers a linearity error of ±0.23% and a repeat accuracy between 2 and 86 µm. It includes a Teach-in button and RS485 for easy adjustment, along with LED indicators for power and output status. The sensor operates on a 12 to 28 VDC supply and has a maximum current consumption of 50 mA. It is designed with a die-cast zinc housing, glass optics, and an M8 4-pin connector. The compact unit measures 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, weighing 67 g. It is built to withstand harsh environments with IP67 protection, ambient light immunity of less than 100 kLux, and robust resistance to vibration and shock as per IEC standards. Suitable for a wide range of industrial applications, it operates effectively within a temperature range of -10 to +50 °C.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 550 mm
- Measuring range Mr:
- 500 mm
- Adjustment:
- Teach-in: button / RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 2 86 µm
- Linearity error:
- ± 0.23 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,08 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- RS485
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
