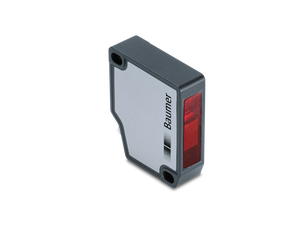

The Baumer OM30-P0550.HV.YIN 11231082 is a high-precision distance measuring sensor with a range of 50 to 550 mm and a measuring frequency of 5000 Hz. It features a pulsed red laser diode with a wavelength of 660 nm and a laser class of 2. The sensor offers various adjustments including Teach-in via button or IO-Link, and it is equipped with both analog and digital output signals (4 ... 20 mA / 2 ... 10 mA). It has a compact design with dimensions of 13.6 mm in width, 49 mm in height, and 40.3 mm in depth, and is housed in die-cast zinc with a glass front. The device is robust, featuring shock and vibration resistance, and operates within a temperature range of -10 to +50 °C. It is protected against short circuits, reverse polarity, and is IP 67 certified, ensuring operation in harsh environments. The sensor also includes LED indicators for power and output status, and it connects via an M8 4-pin connector.
- Type:
- Distance measuring
- Measuring distance Sd:
- 50 550 mm
- Measuring range Mr:
- 500 mm
- Adjustment:
- Teach-in: button / IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- 2 86 µm
- Linearity error:
- ± 0.23 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,08 % Sde/KLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Maximum pulse power:
- 2 mW
- Pulse duration:
- 0.001 ... 1.2 ms
- Pulse period:
- 0.2 ... 3.4 ms
- Response delay:
- 0.4 ms
- Measuring frequency:
- 5000 Hz
- Voltage supply range +Vs:
- 12 28 VDC
- Current consumption max. (no load):
- 50 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA
- Load resistance:
- < (+Vs - 9 V) / 0.02 A
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 13.6 mm
- Height / length:
- 49 mm
- Depth:
- 40.3 mm
- Design:
- Rectangular, front view
- Housing material:
- Die-cast zinc
- Front (optics):
- Glass
- Connection types:
- Connector M8 4 pin
- Weight:
- 67 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
