Baumer

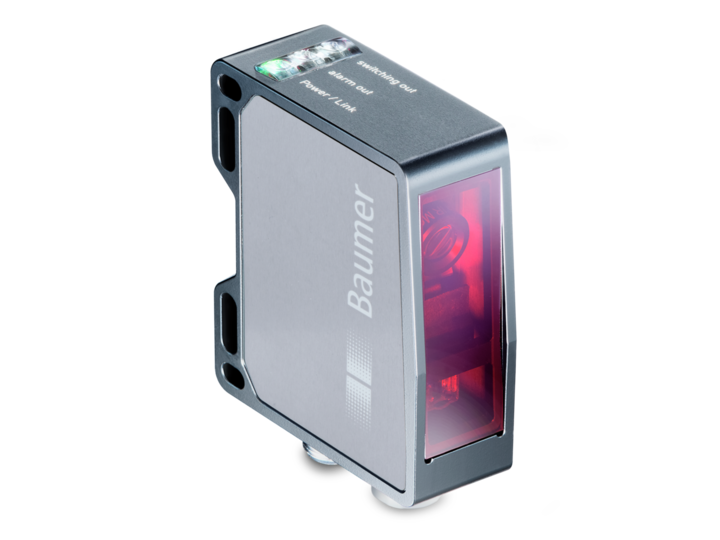

Baumer OM70-L0070.HH0048.EK 11216521

(No reviews yet) Write a Review

Write a Review

Baumer

Baumer OM70-L0070.HH0048.EK 11216521

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

11216521

UPC:

MPN:

Condition:

New

Type:

Distance measuring

Version:

OM70 laser line

Measuring distance Sd:

30 … 70 mm

Measuring range Mr:

40 mm

Sweet spot:

48 mm

Adjustment:

Webserver, Ethernet TCP/IP

Power on indication:

LED green

Output indicator:

LED yellow / LED red

Ethernet link indication:

LED blue

Resolution:

0.7 … 1 µm

Repeat accuracy:

0.1 … 0.3 µm

Linearity error:

± 0.06 % Mr

Beam type:

Line

Temperature drift:

0,01 % Sde/K

Hysteresis digital output:

AdjustableLight source=Pulsed red laser diode

Wave length:

660 nm

Laser class:

1

Response delay:

0.8 ms

Measuring frequency:

2000 Hz

Voltage supply range +Vs:

15 … 28 VDC

Current consumption max. (no load):

75 mA

Output circuit:

Analog and digital

Output signal:

4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC

Output current:

100 mA

Switching output:

Push-pull

Short circuit protection:

Yes

Reverse polarity protection:

Yes, Vs to GND

Width / diameter:

26 mm

Height / length:

74 mm

Depth:

55 mm

Design:

Rectangular, front view

Housing material:

Aluminum

Front (optics):

Glass

Connection types:

Connector M12 8 pin & M12 4 pin

Weight:

135 g

Ambient light immunity:

< 28 kLux

Protection class:

IP 67

Operating temperature:

-10 … +50 °C

Storage temperature:

-20 … +60 °C

Vibration (sinusoidal):

IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis

Shock (semi-sinusoidal):

IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction

Datasheet:

View

Operating Manual:

View
