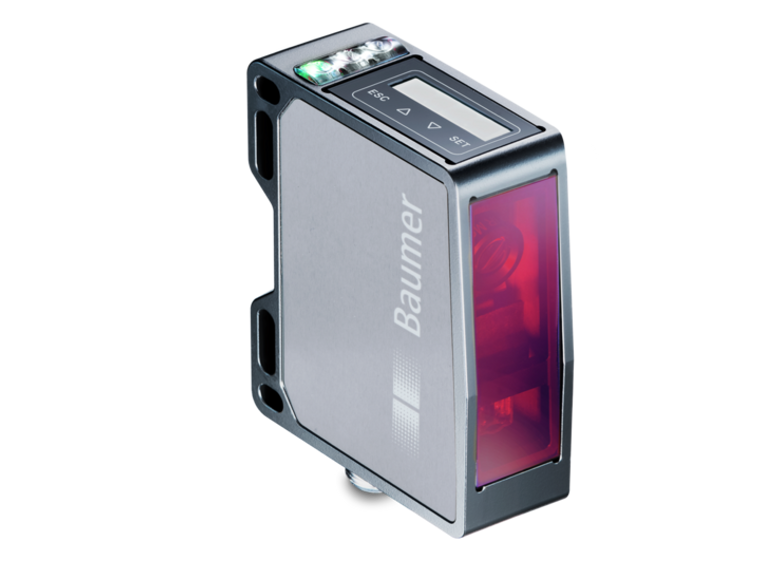

The Baumer OM70-L0250.HH0130.VI 11200066 is a high-precision distance measuring sensor from the OM70 laser line series, designed for a measuring distance of 50 to 250 mm with a sweet spot at 130 mm. It features a touch display and RS485 for easy adjustment, and utilizes a pulsed red laser diode with a wavelength of 660 nm, falling under Laser class 1 for safety. The device offers a high measuring frequency of 2500 Hz and a quick response delay of 0.8 ms, ensuring rapid and reliable readings. It supports both analog and RS485 output circuits, with output signals ranging from 4 to 20 mA and 0 to 10 VDC. The sensor is built to withstand harsh environments with IP 67 protection, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards. Its compact aluminum housing with glass optics measures 26 mm in width, 74 mm in height, and 55 mm in depth, and it connects via an M12 8-pin connector.
- Type:
- Distance measuring
- Version:
- OM70 laser line
- Measuring distance Sd:
- 50 250 mm
- Measuring range Mr:
- 200 mm
- Sweet spot:
- 130 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.4 6.3 µm
- Repeat accuracy:
- 0.3 2 µm
- Linearity error:
- ± 0.09 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,025 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
