Baumer OM70-L0250.HH0240.VI 11112061
Baumer

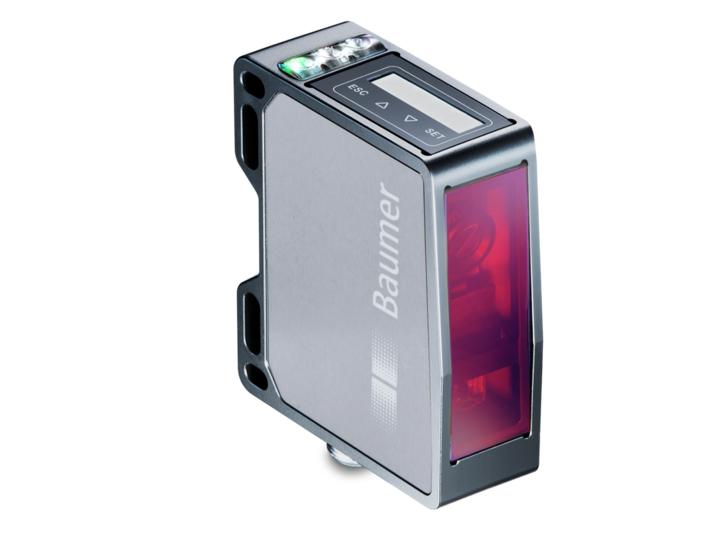

The Baumer OM70-L0250.HH0240.VI 11112061 is a high-precision distance measuring sensor from the OM70 laser line basic series, designed for a measuring distance of 50 to 250 mm and a measuring range of 200 mm. It features a sweet spot at 240 mm and offers high resolution between 1.4 to 6.3 µm with repeat accuracy ranging from 0.3 to 2 µm. The device includes a touch display and RS485 for adjustments, and uses a pulsed red laser diode with a wavelength of 660 nm, classified as Laser class 1. It supports a measuring frequency of 2500 Hz and operates with a voltage supply range of 15 to 28 VDC. The sensor is equipped with both analog and RS485 output circuits, providing output signals of 4 to 20 mA or 0 to 10 VDC. It features robust construction with an aluminum housing, glass optics, and an M12 8-pin connector, ensuring durability with IP67 protection class and resistance to vibration and shock as per IEC standards. The compact design measures 26 mm in width, 74 mm in height, and 55 mm in depth, weighing 130 g.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 50 250 mm
- Measuring range Mr:
- 200 mm
- Sweet spot:
- 240 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.4 6.3 µm
- Repeat accuracy:
- 0.3 2 µm
- Linearity error:
- ± 0.09 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,025 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
