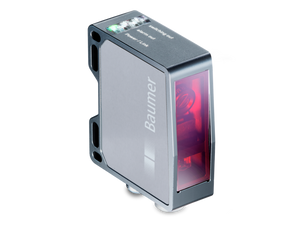

The Baumer OM70-L0600.HV0350.VI 11200090 is a high-precision distance measuring sensor from the OM70 laser line series, designed for a measuring distance of 100 to 600 mm and a measuring range of 500 mm, with a sweet spot at 350 mm. It features a touch display and RS485 for easy adjustment, and uses a pulsed red laser diode with a wavelength of 660 nm. The device offers a resolution of 3 to 24 µm and repeat accuracy of 1 to 9 µm, with a linearity error of ±0.12% Mr. It includes both analog and RS485 output circuits, with output signals of 4 to 20 mA or 0 to 10 VDC, and a maximum output current of 100 mA. The sensor is housed in a durable aluminum casing, measures 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 130 g. It is equipped with LED indicators for power and output status, and offers protection features such as short circuit and reverse polarity protection. The sensor operates within a voltage supply range of 15 to 28 VDC and can withstand ambient light up to 170 kLux. It is rated IP67 for protection against dust and water ingress, and can operate in temperatures ranging from -10 to +50 °C. The sensor is also designed to handle vibrations and shocks as specified by IEC standards.
- Type:
- Distance measuring
- Version:
- OM70 laser line
- Measuring distance Sd:
- 100 600 mm
- Measuring range Mr:
- 500 mm
- Sweet spot:
- 350 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 24 µm
- Repeat accuracy:
- 1 9 µm
- Linearity error:
- ± 0.12 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,04 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
