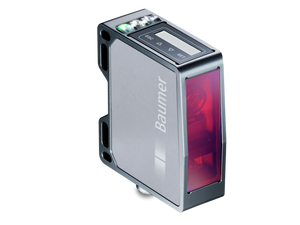

The Baumer OM70-L1500.HH1500.VI 11112012 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance range of 150 to 1500 mm and a measuring frequency of 2500 Hz, ensuring rapid and accurate data capture. The device is equipped with a pulsed red laser diode with a wavelength of 660 nm and operates within a laser class 1 safety standard. It offers multiple outputs including analog and RS485, and supports both 4 ... 20 mA and 0 ... 10 VDC output signals. The sensor's robust design includes an aluminum housing, glass optics, and an IP67 protection rating, making it suitable for harsh environments. Additional features include touch display adjustment, LED indicators for power and output status, and comprehensive protection against short circuits and reverse polarity. The compact dimensions (26 mm width, 74 mm height, 55 mm depth) and a weight of 130 g make it versatile for various installation needs.
- Type:
- Distance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 150 1500 mm
- Measuring range Mr:
- 1350 mm
- Sweet spot:
- 1500 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 13 125 µm
- Repeat accuracy:
- 3 63 µm
- Linearity error:
- ± 0.32 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,100 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
