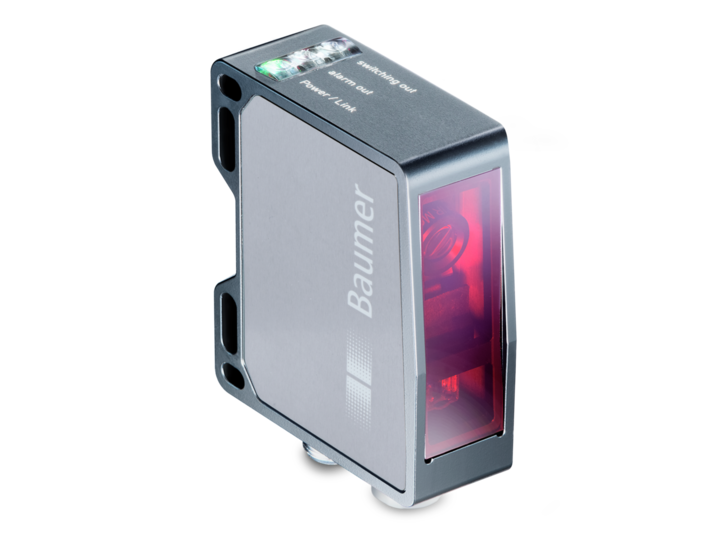

The Baumer OM70-P0070.HH0065.EK 11216511 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 30 to 70 mm and a measuring range of 40 mm, with a sweet spot at 65 mm. The device offers high resolution (0.7 to 1 µm) and repeat accuracy (0.1 to 0.3 µm), ensuring reliable measurements. It includes a pulsed red laser diode with a wavelength of 660 nm and is classified as a safe Laser class 1 device. The sensor is equipped with multiple outputs (analog and digital) and offers Ethernet connectivity for easy integration into networks. It operates within a voltage supply range of 15 to 28 VDC and has a robust aluminum housing with IP67 protection, making it suitable for harsh environments. The sensor's dimensions are 26 mm in width, 74 mm in height, and 55 mm in depth, and it weighs 135 g. Additional features include shock and vibration resistance, ambient light immunity, and temperature stability, enhancing its performance in diverse operating conditions.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 30 70 mm
- Measuring range Mr:
- 40 mm
- Sweet spot:
- 65 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 0.7 1 µm
- Repeat accuracy:
- 0.1 0.3 µm
- Linearity error:
- ± 0.06 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,01 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2000 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and digital
- Output signal:
- 4 ... 20 mA / 2 ... 10 mA / 0 ... 10 VDC / 0 ... 5 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 28 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
