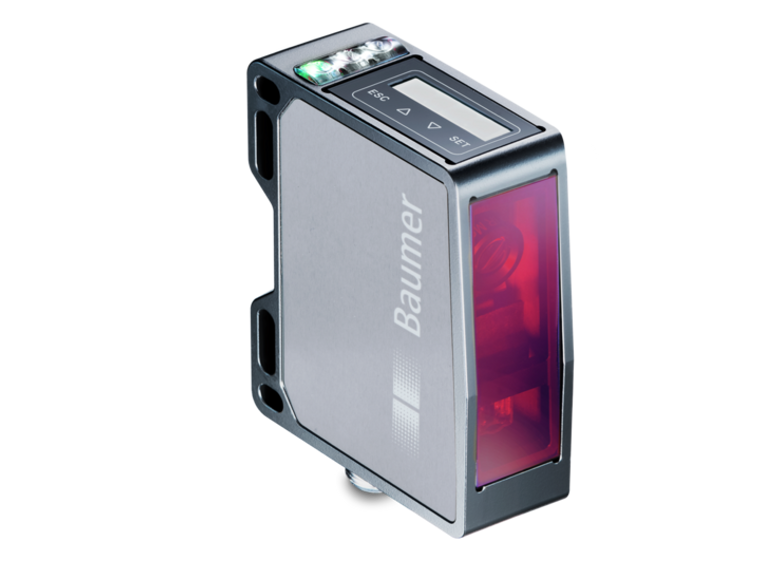

The Baumer OM70-P0070.HH0065.VI 11195785 is a high-precision distance measuring sensor designed for industrial applications. It features a measuring distance of 30 to 70 mm and a measuring range of 40 mm, with a sweet spot at 65 mm. The device offers exceptional accuracy with a resolution between 0.7 to 1 µm and repeat accuracy of 0.1 to 0.3 µm. It includes a touch display and RS485 for easy adjustment, and uses a pulsed red laser diode with a wavelength of 660 nm, classified as Laser class 1. The sensor operates with a fast response delay of 0.8 ms and a high measuring frequency of 2500 Hz. It supports a voltage supply range of 15 to 28 VDC and features both analog and RS 485 output circuits. The robust design includes an aluminum housing, glass optics, and is IP 67 rated for dust and water resistance. It is equipped with short circuit and reverse polarity protection, ensuring durability and reliability in challenging environments. The sensor's dimensions are 26 mm in width, 74 mm in height, and 55 mm in depth, weighing 130 g. It is designed to withstand ambient light immunity of less than 28 kLux, operating temperatures from -10 to +50 °C, and is resistant to vibration and shock as per IEC standards.
- Type:
- Distance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 30 70 mm
- Measuring range Mr:
- 40 mm
- Sweet spot:
- 65 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 0.7 1 µm
- Repeat accuracy:
- 0.1 0.3 µm
- Linearity error:
- ± 0.06 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,01 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 28 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
