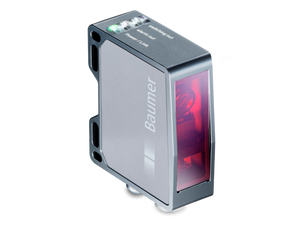

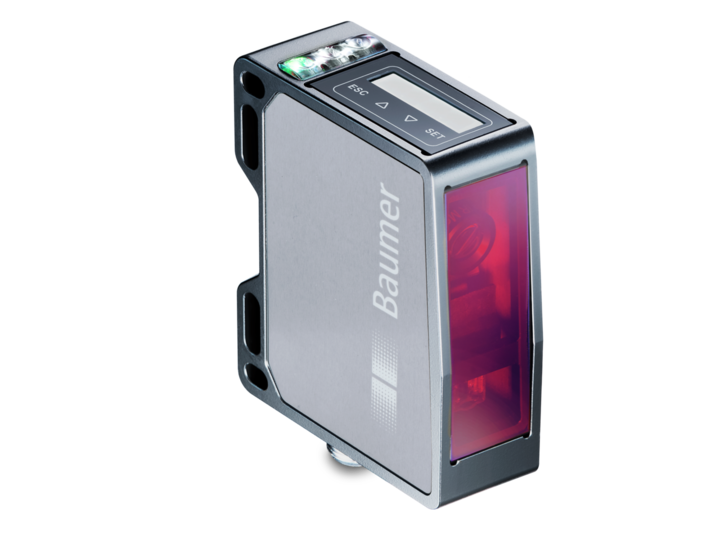

The Baumer OM70-P1000.HV0700.VI 11200091 is a high-precision distance measuring sensor from the OM70 laser point series, designed for a measuring distance of 100 to 1000 mm with a sweet spot at 700 mm. It features a touch display and RS485 for easy adjustment, and uses a pulsed red laser diode with a wavelength of 660 nm. The device offers a high measuring frequency of 2500 Hz and a quick response delay of 0.8 ms. It provides both analog and RS485 digital outputs, with a resolution between 3 and 63 µm and repeat accuracy from 1 to 32 µm. The sensor is housed in a durable aluminum case with glass optics, measures 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 130 g. It is equipped with LED indicators for power and output status, and offers protection features like short circuit and reverse polarity protection. The sensor operates within a voltage supply range of 15 to 28 VDC and is designed to withstand harsh environments with an IP67 rating, making it suitable for a wide range of industrial applications.
- Type:
- Distance measuring
- Version:
- OM70 laser point
- Measuring distance Sd:
- 100 1000 mm
- Measuring range Mr:
- 900 mm
- Sweet spot:
- 700 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 3 63 µm
- Repeat accuracy:
- 1 32 µm
- Linearity error:
- ± 0.19 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,065 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 2
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 100 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
