Baumer OM70-P1000.HV1000.EK 11216513
Baumer

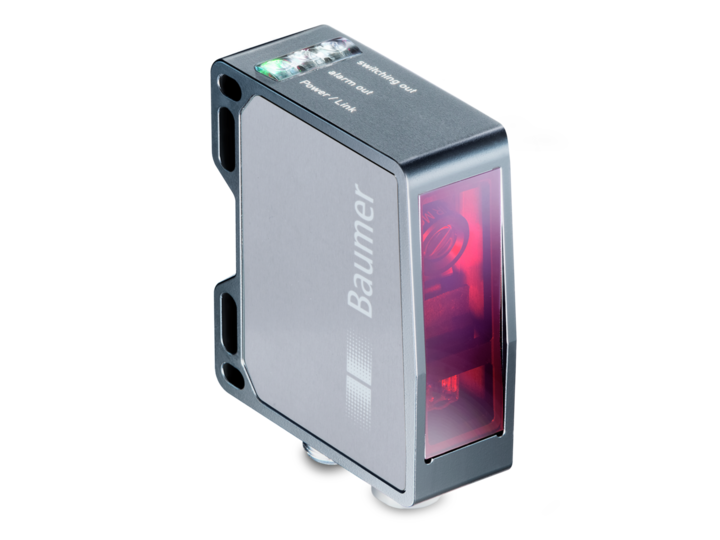

The Baumer OM70-P1000.HV1000.EK 11216513 is a high-precision distance measuring device featuring a laser point for basic applications. It offers a measuring distance of 100 to 1000 mm and a measuring range of 900 mm, with a sweet spot at 1000 mm. The device is equipped with a webserver and Ethernet TCP/IP for adjustments, and it has multiple LED indicators for power, output, and Ethernet link status. It boasts a resolution of 3 to 63 µm and repeat accuracy of 1 to 32 µm, with a linearity error of ±0.19% Mr. The laser, a pulsed red diode with a wavelength of 660 nm, falls under Laser class 2. It has a fast response delay of 0.8 ms and a measuring frequency of 2000 Hz. The device operates on a voltage supply range of 15 to 28 VDC and includes both analog and digital output circuits. It features robust construction with an aluminum housing and glass optics, ensuring durability with IP 67 protection against dust and water. The device is designed to withstand ambient light up to 100 kLux and operates effectively in temperatures ranging from -10 to +50 °C. It also meets IEC standards for vibration and shock resistance, making it suitable for challenging industrial environments.
- Usage:
- Connecting cable for Connector type M12
- Connection type (head 1):
- Connector female
- Dimension (head 1):
- M12
- Type (head 1):
- Angled
- Connection type (head 2):
- Free cable end
- Particular characteristics:
- Suitable for flexible cable carriers
- Shielding:
- Unshielded
- Material cable jacket:
- PUR halogen-free
- Length:
- 10 m
- Number of positions:
- 3 pins
- Protection class:
- IP 65/67/68;
- QN-QUOTE-REQUEST:
- true
