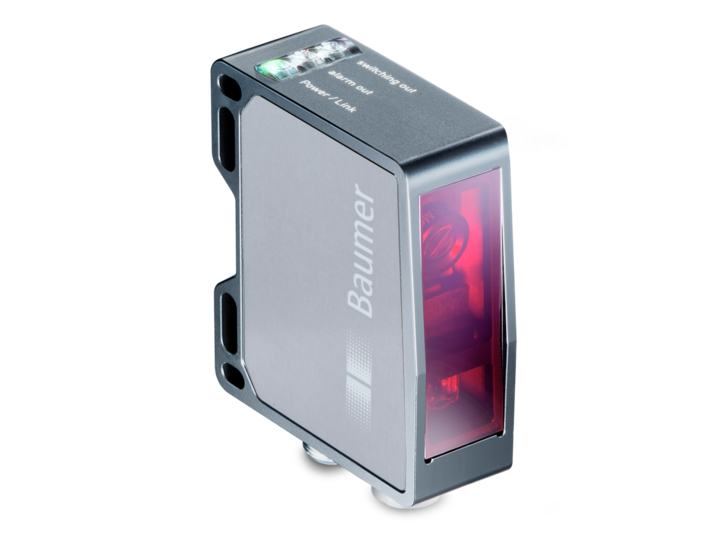

Baumer OM70-P1500.HV1500.EK 11216514
Baumer

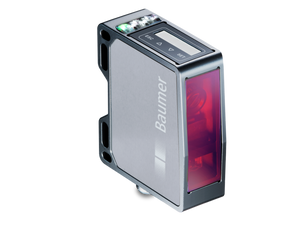

The Baumer OM70-P1500.HV1500.EK 11216514 is a high-precision distance measuring device featuring a laser point for basic applications. It offers a measuring distance of 150 to 1500 mm with a resolution between 13 to 125 µm and repeat accuracy from 3 to 63 µm. The device includes a linearity error of ±0.32% of the measuring range and a temperature drift of 0.100% Sde/K. It is equipped with a pulsed red laser diode light source, operating at a wavelength of 660 nm and classified as Laser class 2. The measuring frequency reaches up to 2000 Hz, and it has a quick response delay of 0.8 ms. For connectivity and adjustments, it features a webserver and Ethernet TCP/IP, along with multiple LED indicators for power, output, and Ethernet link status. The output options are versatile, including analog and digital signals, and it supports push-pull switching output with short circuit and reverse polarity protection. The device is housed in a durable aluminum casing with glass optics, measuring 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 135 g. Designed to withstand harsh environments, it has an IP67 protection class, operates between -10 to +50 °C, and can endure significant ambient light up to 35 kLux. It also meets rigorous standards for vibration and shock resistance, ensuring reliability in challenging conditions. The device is suitable for a wide range of industrial applications where precise distance measurement is critical.
- Usage:
- Connecting cable for Connector type M8
- Connection type (head 1):
- Connector female
- Dimension (head 1):
- M8
- Type (head 1):
- Straight
- Connection type (head 2):
- Free cable end
- Particular characteristics:
- Suitable for flexible cable carriers
- Shielding:
- Unshielded
- Material cable jacket:
- PUR halogen-free
- Length:
- 10 m
- Number of positions:
- 4 pins
- Protection class:
- IP 65/67/68
- Datasheet:
- View;
