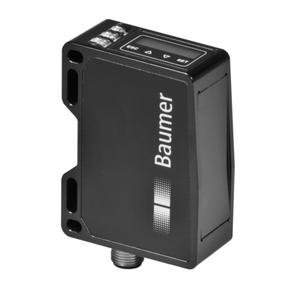

The Baumer OM70-X0150.HI0720.EK 11185168 is a high-precision distance measuring device from the OM70 multi-spot series, designed for measuring distances ranging from 100 to 150 mm and widths from 48 to 72 mm. It features a webserver and Ethernet TCP/IP for easy adjustment, along with various LED indicators for power, output, and Ethernet link status. The device offers a resolution between 2 and 4 µm and maintains linearity with an error margin of ±30 to 90 µm. Equipped with a pulsed red laser diode (656 nm wavelength, laser class 1), it ensures safe and accurate measurements with a response time of 3.5 ms and a measuring frequency of 570 Hz. The unit operates on a voltage supply range of 15 to 28 VDC and includes safety features like short circuit and reverse polarity protection. Its robust aluminum housing with glass optics is designed to withstand harsh environments, evidenced by its IP 67 protection class and resistance to vibration and shock as per IEC standards. The device's compact dimensions and lightweight design make it suitable for various industrial applications. Links to the datasheet and operating manual are provided for detailed technical information and usage guidelines.
- Type:
- Distance measuring
- Version:
- OM70 multi-spot
- Measuring distance Sd:
- 100 150 mm
- Measuring range (width):
- 48 72 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 2 4 µm
- Linearity error:
- ± 30 90 µm 1) 2) 4)
- Beam type:
- Multi-spot
- Temperature drift:
- ± 0,04 % Sde/K 1) 2) 4)Light source=Pulsed red laser diode
- Wave length:
- 656 nm
- Laser class:
- 1
- Response time / release time:
- 3.5 ms 2) 3)
- Measuring frequency:
- 570 Hz 2) 3)
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 150 mA
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis 10 g at f = 58 - 2000 Hz, 10 cycles per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
