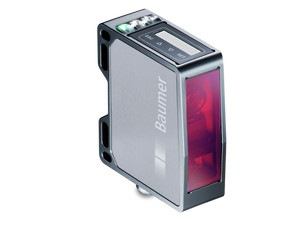

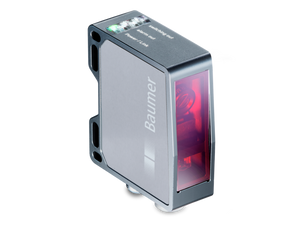

The Baumer OM70T-L0250.HH0240.VI 11175097 is a high-precision tolerance measuring laser sensor designed for industrial applications. It features a measuring distance of 50 to 250 mm and a measuring range of 200 mm, with a sweet spot at 240 mm. The device offers high resolution (1.4 to 6.3 µm) and repeat accuracy (0.3 to 2 µm), ensuring reliable measurements. It includes a touch display and RS485 for adjustments, along with LED indicators for power and output status. The sensor operates with a pulsed red laser diode (660 nm wavelength, laser class 1) and has a fast response delay of 0.8 ms with a measuring frequency of 2500 Hz. It supports a voltage supply range of 15 to 28 VDC and features both analog and RS485 outputs. The robust design includes an aluminum housing, glass optics, and an IP67 protection class, making it suitable for harsh environments. Additional features include shock and vibration resistance, ambient light immunity, and temperature stability, ensuring reliable operation in diverse conditions. The sensor is compact, with dimensions of 26 mm in width, 74 mm in height, and 55 mm in depth, and weighs 130 g. It connects via an M12 8-pin connector, enhancing its versatility in integration.
- Type:
- Tolerance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 50 250 mm
- Measuring range Mr:
- 200 mm
- Sweet spot:
- 240 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.4 6.3 µm
- Repeat accuracy:
- 0.3 2 µm
- Linearity error:
- ± 0.09 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,025 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 170 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
