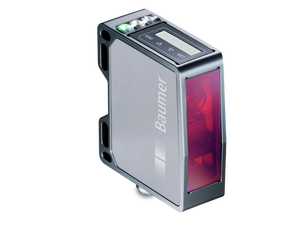

Baumer OM70T-P0140.HH0130.VI 11175099 is a high-precision tolerance measuring laser sensor designed for industrial applications. It features a measuring distance of 40 to 140 mm and a measuring range of 100 mm, with a sweet spot at 130 mm. The device offers high resolution between 1.2 to 2.5 µm and repeat accuracy from 0.3 to 0.7 µm. It includes a touch display and RS485 for adjustments, and uses a pulsed red laser diode with a wavelength of 660 nm. The sensor operates with a fast response delay of 0.8 ms and a measuring frequency of 2500 Hz. It supports a voltage supply range of 15 to 28 VDC and includes both analog and RS485 output circuits. The robust design features an aluminum housing, glass optics, and is IP67 rated for dust and water resistance. It operates effectively in temperatures ranging from -10 to +50 °C and is resistant to vibration and shock as per IEC standards. The sensor is equipped with LED indicators for power and output status, and offers protection against short circuits and reverse polarity.
- Type:
- Tolerance measuring
- Version:
- OM70 laser point basic
- Measuring distance Sd:
- 40 140 mm
- Measuring range Mr:
- 100 mm
- Sweet spot:
- 130 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 1.2 2.5 µm
- Repeat accuracy:
- 0.3 0.7 µm
- Linearity error:
- ± 0.07 % Mr
- Beam type:
- Point
- Temperature drift:
- 0,015 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 38 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
