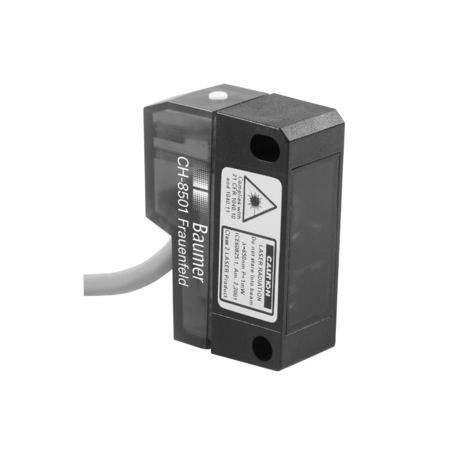

The Baumer OPDK 14P1902 11001300 is a retro-reflective laser sensor designed for transparency object detection. It features a single lens optic with a pulsed red laser diode light source, offering an actual range of 4.5 m and a nominal range of 5.2 m. The sensor provides high repeat accuracy of 0.1 mm at laser focus and includes a polarization filter. It is equipped with LED indicators for power and operation status, and sensitivity can be adjusted via Teach-in. The laser is classified as Class 1, ensuring safety in operation. It operates within a voltage supply range of 10 to 30 VDC and includes protection features like short circuit and reverse polarity protection. The compact, rectangular design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a housing made of durable plastic and a PMMA front optics. The sensor is suitable for temperatures ranging from -10 to +50 °C and is rated IP 67 for water and dust resistance. Connection is facilitated through a 4-pin, 2 m cable.
- Type:
- Retro-reflective laser sensor
- Version:
- Transparency object detection Single lens optics
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 4.5 m
- Nominal range Sn:
- 5.2 m
- Repeat accuracy:
- 0.1 mm at laser focus
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in
- Laser class:
- 1
- Distance to focus:
- 100 mm
- Wave length:
- 650 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Light operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Teach value stored after power-off:
- Volatile
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +50 °C
- Protection class:
- IP 67
