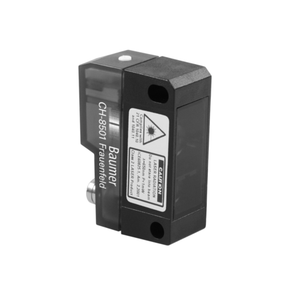

The Baumer OPDK 14P3903 11001312 is a retro-reflective laser sensor designed for transparency object detection. It features single lens optics with a pulsed red laser diode light source, offering an actual range of 4.5 m and a nominal range of 5.2 m. The sensor provides high repeat accuracy of 0.1 mm at laser focus and includes a polarization filter. It is equipped with LED indicators for power and operation status, and sensitivity can be adjusted via Teach-in. The laser is classified as Class 1, with a wavelength of 650 nm and a quick response time of less than 0.25 ms. It operates on a voltage supply range of 10 to 30 VDC and includes safety features like short circuit and reverse polarity protection. The sensor has a compact, rectangular plastic housing, measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, and is designed to withstand operating temperatures from -10 to +50 °C. It is IP 67 rated, ensuring protection against dust and water ingress, and connects via a 4-pin, 2 m cable.
- Type:
- Retro-reflective laser sensor
- Version:
- Transparency object detection Single lens optics
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 4.5 m
- Nominal range Sn:
- 5.2 m
- Repeat accuracy:
- 0.1 mm at laser focus
- Polarization filter:
- Yes
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Teach-in
- Laser class:
- 1
- Distance to focus:
- 100 mm
- Wave length:
- 650 nm
- Response time / release time:
- < 0.25 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Voltage drop Vd:
- <2.2 VDC
- Output function:
- Dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Teach value stored after power-off:
- Non volatile
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -10 +50 °C
- Protection class:
- IP 67
