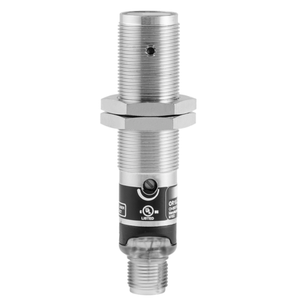

The Baumer OR18.EL-PV1P.7BO 11157817 is a through beam sensor designed for precise object detection with an actual range of 55 m and a nominal range of 60 m. This receiver unit features a yellow LED output indicator and a green LED for power status. It offers adjustable sensitivity via a 270° potentiometer and boasts a quick response/release time of less than 0.34 ms. Operating on a voltage supply range of 10 to 30 VDC, it has a typical current consumption of 35 mA and a maximum of 45 mA. The sensor supports both light and dark operating modes with PNP complementary output circuit and can handle an output current of 100 mA. It includes short circuit and reverse polarity protection. The cylindrical threaded design, with a width of 18 mm and length of 81.5 mm, is made from brass nickel-plated housing and PMMA front optics. It connects via an M12 4-pin connector and operates within a temperature range of -10 to +55 °C. Rated IP 67, it is well-suited for challenging environments. For more details, refer to the datasheet linked [here](https://www.baumer.com/medias/__secure__/Baumer_OR18.EL-PV1P.7BO_EN_20201216_DS.pdf?mediaPK=9009156522014).
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 55 m
- Nominal range Sn:
- 60 m
- Output indicator:
- LED yellow
- Power on indication:
- LED green
- Sensitivity adjustment:
- Potentiometer, 270°
- Response time / release time:
- < 0.34 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 35 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP complementary
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 81.5 mm
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -10 +55 °C
- Protection class:
- IP 67
- Datasheet:
- View
