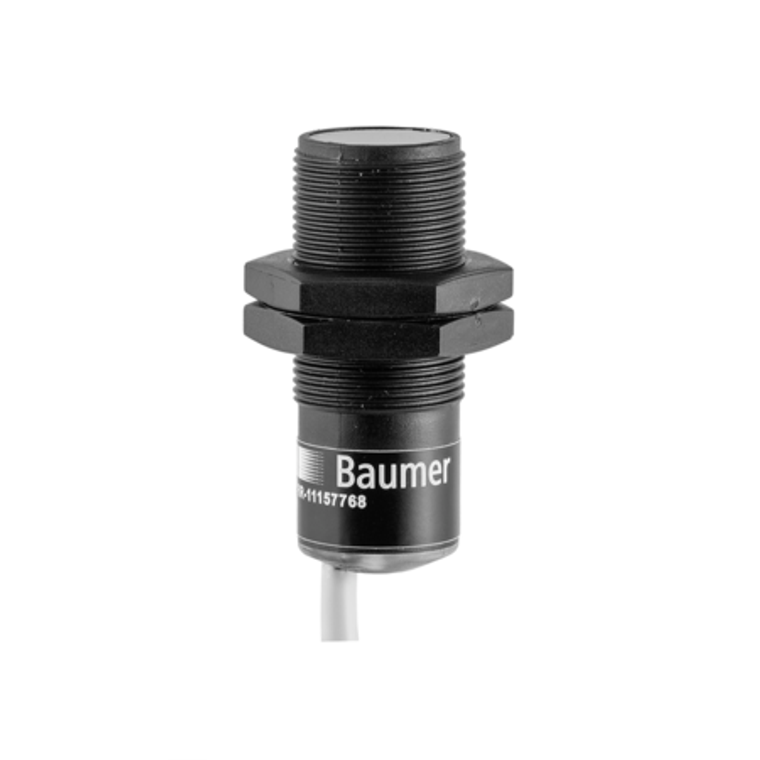

Baumer OR18.RR-NW1Z.71OV/0010 11157783 is a retro-reflective sensor equipped with a pulsed red LED light source, featuring a nominal range of 4.5 meters and an actual range of 3.5 meters. It includes a polarization filter and indicators for alignment or soiled lens (green LED) and output (yellow LED). This model does not allow for sensitivity adjustment but offers suppression of reciprocal influence and a quick response/release time of less than 1 ms. It operates on a voltage supply range of 12 to 30 VDC, with a typical current consumption of 30 mA and a maximum of 40 mA. The output function can be set to light or dark operate, and it features an NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor has a cylindrical threaded design, measuring 18 mm in width and 44.8 mm in length, with a housing made of ABS plastic and a PMMA front optics. It connects via a flylead connector M12 4 pin, 100 mm in length, and operates within a temperature range of -25 to +55 °C. The sensor is rated IP 67 for protection against dust and water ingress.
- Type:
- Retro-reflective sensor
- Light source:
- Pulsed red LED
- Actual range Sb:
- 3.5 m
- Nominal range Sn:
- 4.5 m
- Polarization filter:
- Yes
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- No
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 44.8 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M12 4 pin, L=100 mm
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67
