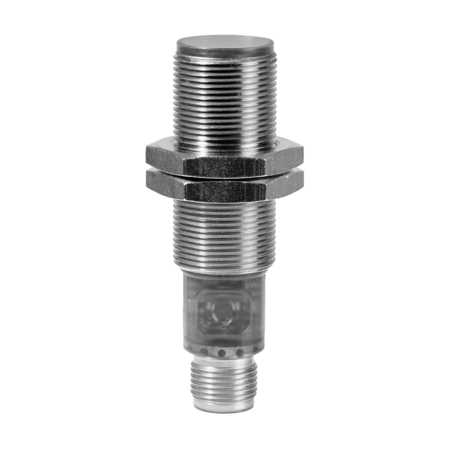

Baumer OR18.SP-GW1B.7BO 11128095
Baumer
The Baumer OR18.SP-GW1B.7BO 11128095 is a standard object detection light barrier equipped with a pulsed PinPoint LED light source with a wavelength of 630 nm. It features a background position from 55 to 300 mm and a scanning range of 90% to 85% of the background position. The device includes LED indicators for operation and output status, with a green LED for light and a yellow LED for output. Sensing distance can be adjusted via qTeach or externally, and it includes features such as suppression of reciprocal influence, short circuit protection, and reverse polarity protection. The light barrier operates with a voltage supply range of 10 to 30 VDC and has a quick response time of less than 0.49 ms. It supports both light and dark operating modes with a push-pull output circuit and can handle an output current of up to 100 mA. The cylindrical threaded housing is made of brass nickel-plated material with a PA front optics, and it connects via an M12 4-pin connector. This robust sensor is IP67 rated, making it suitable for harsh environments, and operates within a temperature range of -25 to +60 °C.
- Type:
- Light barrier
- Version:
- Standard object detection
- Background position Sde:
- 55 300 mm
- Scanning range Sa:
- 90% ... 85% Sde
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach / external
- Suppression of reciprocal influence:
- YesLight source=Pulsed PinPoint LED
- Wave length:
- 630 nm
- Response time / release time:
- < 0.49 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 45 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <3 VDC
- Output function:
- Light / dark operate
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 65 mm
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Front (optics):
- PA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +60 °C
