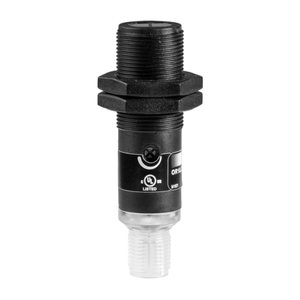

The Baumer OR18.ZI-NW1P.71O/B013 11157797 is an intensity difference sensor with a sensing distance of less than 300 mm. It features a green LED for alignment or soiled lens indication and a yellow LED output indicator. The sensor's sensing distance can be adjusted via a 270° potentiometer and includes suppression of reciprocal influence. It utilizes a pulsed infrared diode light source with a wavelength of 880 nm and boasts a quick response and release time of less than 1 ms. The sensor operates on a voltage supply range of 12 to 30 VDC, with a typical current consumption of 30 mA and a maximum of 40 mA. It offers both light and dark operating modes through an NPN output circuit and supports an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's cylindrical threaded design measures 18 mm in width/diameter and 67.2 mm in height/length, with a housing made of ABS plastic and a PMMA front optics. It connects via an M12 4-pin connector and is rated IP 67 for protection against dust and water ingress, suitable for operating temperatures ranging from -25 to +55 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- < 300 mm
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 67.2 mm
- Design:
- Cylindrical threaded
- Housing material:
- Plastic (ABS TERLURAN)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +55 °C
