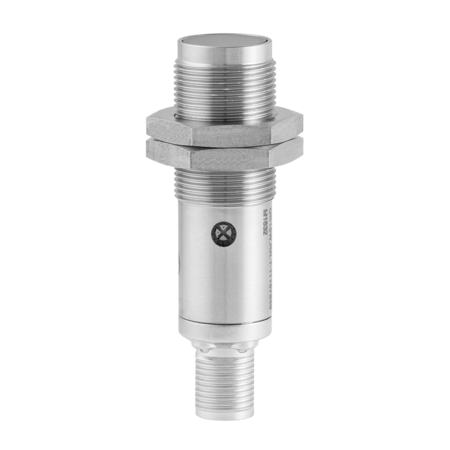

Baumer OR18W.RR.T-NW1P.9VO 11157846 is a retro-reflective sensor designed for transparency object detection, featuring a pulsed red LED light source with a wavelength of 660 nm. It has a nominal range of 0.8 m and an actual range of 0.5 m. Equipped with a polarization filter, this sensor offers a quick response and release time of less than 1 ms. It operates on a voltage supply range of 12 to 30 VDC and includes a yellow LED output indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor supports both light and dark operating modes with an NPN output circuit and can handle an output current of 100 mA. It includes short circuit and reverse polarity protection. The cylindrical threaded housing is made of stainless steel 1.4404 (V4A) with a PMMA front optics, ensuring durability and resistance to harsh environments with an IP 67/69K protection class. It connects via an M12 4-pin connector and operates within a temperature range of -25 to +55 °C.
- Type:
- Retro-reflective sensor
- Special type:
- Washdown design
- Version:
- Transparency object detection
- Light source:
- Pulsed red LED
- Actual range Sb:
- 0.5 m
- Nominal range Sn:
- 0.8 m
- Polarization filter:
- Yes
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Wave length:
- 660 nm
- Suppression of reciprocal influence:
- Yes
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 67.2 mm
- Design:
- Cylindrical threaded
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Operating temperature:
- -25 +55 °C
- Protection class:
- IP 67/69K
