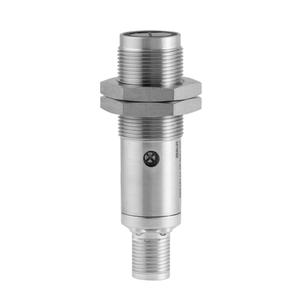

The Baumer OR18W.ZI-NW1P.9VO/B005 11157850 is an intensity difference sensor with a washdown design, suitable for harsh environments with its IP 67/69K protection class. It features a sensing distance of up to 800 mm and includes a green LED for alignment or soiled lens indication and a yellow LED for output status. The sensor is equipped with a potentiometer for precise sensing distance adjustment and uses a pulsed infrared diode with a wavelength of 880 nm. It offers a fast response and release time of less than 1 ms, operates on a 12 to 30 VDC voltage supply, and has a maximum current consumption of 40 mA. The output function can be set to light or dark operate, and it includes NPN output circuitry with a maximum output current of 100 mA. Additional features include short circuit and reverse polarity protection, a cylindrical threaded design with a stainless steel 1.4404 housing, and a PMMA front optics. The sensor is designed for easy integration with a 4-pin M12 connector.
- Type:
- Intensity difference
- Special type:
- Washdown design
- Sensing distance Tw:
- < 800 mm
- Alignment / soiled lens indicator:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Current consumption typ.:
- 30 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 67.2 mm
- Design:
- Cylindrical threaded
- Housing material:
- Stainless steel 1.4404 (V4A)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67/69K
- Operating temperature:
- -25 +55 °C
