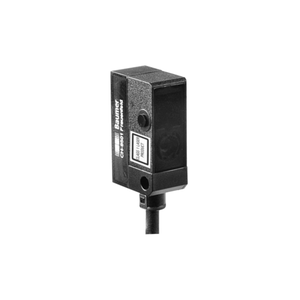

The Baumer OSDK 10D9005/S35A 10165143 is a through beam laser sensor designed for precise detection tasks. It features a pulsed red laser diode as its light source with a wavelength of 650 nm. The sensor offers an actual range of 8 meters and a nominal range of 10 meters. It is classified as a Laser class 1 device, ensuring safe operation under all conditions. The sensor maintains a parallel beam focus and operates efficiently with a voltage supply range of 11 to 30 VDC. It consumes a maximum of 30 mA with no load and typically 25 mA. The device is built with a robust plastic (ASA) housing, measures 10.4 mm in width, 27 mm in height, and 16.3 mm in depth, and features a PMMA front optics. It includes reverse polarity protection, an M8 4-pin connector for easy connection, and operates within a temperature range of -10 to +50 °C. The sensor is IP 67 rated, indicating high resistance to dust and water ingress, making it suitable for a variety of industrial environments. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_OSDK-10D9005-S35A_EN_20221110_DS.pdf?mediaPK=9056490913822).
- Type:
- Through beam laser sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 8 m
- Nominal range Sn:
- 10 m
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 650 nm
- Voltage supply range +Vs:
- 11 30 VDC
- Current consumption max. (no load):
- 30 mA
- Current consumption typ.:
- 25 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 10.4 mm
- Height / length:
- 27 mm
- Depth:
- 16.3 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -10 +50 °C
- Protection class:
- IP 67
- Datasheet:
- View
