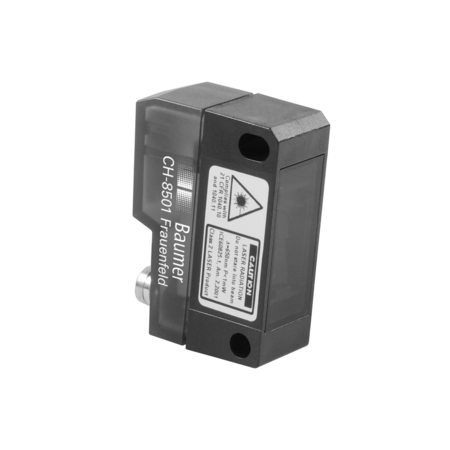

The Baumer OSDK 14D9001/S35A 11001329 is a through beam laser sensor designed for precise detection tasks. It features a pulsed red laser diode as its light source with a wavelength of 650 nm. The sensor offers an actual range of 8 meters and a nominal range of 10 meters. It is equipped with a green LED for power-on indication and operates within a voltage supply range of 10 to 30 VDC. The sensor's current consumption is typically 25 mA, with a maximum of 35 mA under no load conditions. It includes reverse polarity protection and has a compact, rectangular design with dimensions of 14.8 mm in width, 43 mm in length, and 31 mm in depth. The housing is made of durable plastic (ASA, MABS), and the front optics are crafted from PMMA. It connects via an M8 4-pin connector and operates effectively in temperatures ranging from 10 to +50 °C. The sensor is classified as Laser class 1, ensuring safe operation, and is IP 67 rated for protection against dust and water ingress. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_OSDK-14D9001-S35A_EN_20221110_DS.pdf?mediaPK=9056492486686).
- Type:
- Through beam laser sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red laser diode
- Actual range Sb:
- 8 m
- Nominal range Sn:
- 10 m
- Power on indication:
- LED green
- Laser class:
- 1
- Distance to focus:
- Parallel beam
- Wave length:
- 650 nm
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 35 mA
- Current consumption typ.:
- 25 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- 10 +50 °C
- Protection class:
- IP 67
- Datasheet:
- View
