Baumer OT300.DL-UBZZB.72N
Baumer
The Baumer OT300.DL-UBZZB.72N is a high-precision distance measuring sensor utilizing Time of Flight technology. It offers a measuring distance of 100 to 1800 mm and a measuring range of 1700 mm, with a focal distance of 700 mm. The device features qTeach and external adjustment options, and is equipped with green and yellow LEDs for power and output indication, respectively. It boasts a repeat accuracy of ? 1400 to 5500 µm and a linearity error of ± 10 mm. The sensor uses a pulsed red laser diode with a wavelength of 680 nm, classified as Laser class 1, ensuring safe operation. It has a fast response time of < 8 ms and operates on a voltage supply range of 12 to 30 VDC. The sensor is designed with robust plastic housing, offers short circuit and reverse polarity protection, and is IP 67 rated for dust and water resistance. It operates effectively in temperatures ranging from -20 to +50 °C and can withstand significant vibration and shock impacts. This sensor is ideal for precise distance measurement in industrial applications.
- Type:
- Distance measuring
- Version:
- Time of Flight
- Measuring distance Sd:
- 100 1800 mm
- Measuring range Mr:
- 1700 mm
- Focal distance:
- 700 mm
- Adjustment:
- qTeach / external
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 1400 5500 µm
- Linearity error:
- ± 10 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 2°
- Temperature drift:
- ± 15 mmLight source=Pulsed red laser diode
- Wave length:
- 680 nm
- Laser class:
- 1
- Response time / release time:
- < 8 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 60 mA
- Output circuit:
- Analog 0 ... 10 VDC
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
Related Products
-
-
Baumer OT300.GL-PLPVT.72N
Baumer
-
Baumer OT300.SL-GDZZJ.72N
Baumer
-

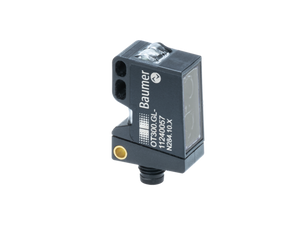

Baumer OT300.GL-NLNVT.72N
