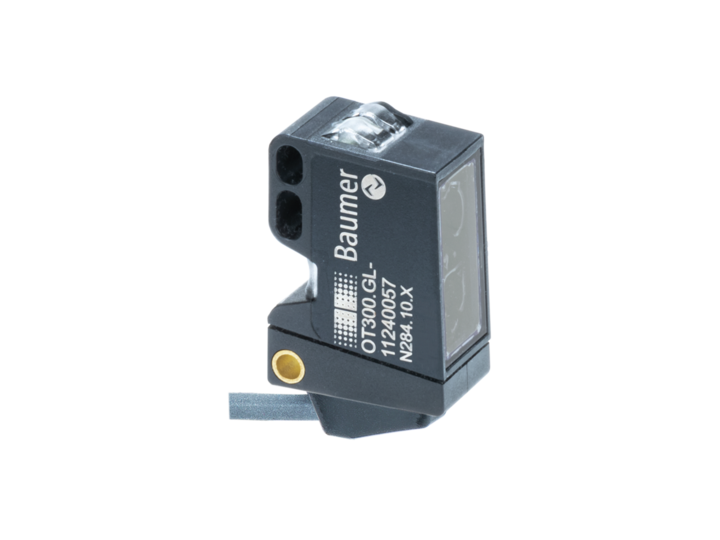

Baumer OT300.GL-PLPVT.72CU
Baumer
$363.50
The Baumer OT300.GL-PLPVT.72CU is a high-performance sensor with background suppression and Time of Flight technology, offering a sensing distance of 100 to 1800 mm and a sensing range of 70 to 1890 mm. It features a pulsed red laser diode light source with a wavelength of 680 nm and a laser class of 1, ensuring safe and precise operation. The sensor has a repeat accuracy of ? 1400 to 5500 µm and a temperature drift of ± 15 mm. It includes a green LED for power indication and a yellow LED for output status, with a qTeach feature for easy sensing distance adjustment. The sensor is equipped with PNP output circuitry, supporting light operate and complementary output functions, and offers protection against short circuits and reverse polarity. It has a compact, rectangular design with dimensions of 12.9 mm in width, 32.3 mm in height, and 23 mm in depth, and is constructed from durable plastic materials (ASA, PMMA). The sensor is IP67 rated for water and dust resistance, operates between -20 to +50 °C, and can withstand significant vibration and shock as per IEC standards. It connects via a 4-pin, 2-meter cable and is suitable for a wide range of industrial applications.
- Type:
- Background suppression
- Version:
- Time of Flight
- Sensing distance Tw:
- 100 1800 mm
- Sensing range Tb:
- 70 1890 mm
- Repeat accuracy:
- ? 1400 5500 µm
- Temperature drift:
- ± 15 mm
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Sensing distance adjustment:
- qTeach
- Distance to focus:
- 700 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 2°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- < 8 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 60 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate, complementary
- Output circuit:
- PNP
- Output current:
- 50 mA, sum of all outputs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.3 mm
- Depth:
- 23 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
