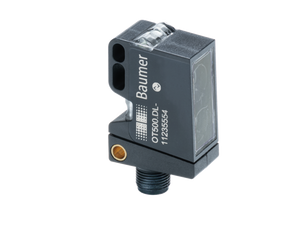

The Baumer OT500.DL-GLIAJ.72F is a high-precision distance measuring sensor utilizing Time of Flight technology. It offers a measuring distance of 150 to 2500 mm and a measuring range of 2350 mm, with a focal distance of 1500 mm. The device features Teach-in and IO-Link for easy adjustment, and it is equipped with green and yellow LEDs for power and output indication, respectively. It achieves repeat accuracy within 1200 to 4300 µm and maintains a linearity error of ±10 mm. The sensor operates with a pulsed red laser diode light source, with a wavelength of 680 nm and is classified as Laser class 1. It supports multiple response times: less than 4 ms in High Speed Mode, less than 8 ms in Standard Mode, and less than 50 ms in Long Range Mode. The sensor is powered by a 12 to 30 VDC supply, has a maximum no-load current consumption of 60 mA, and features both analog and push-pull / IO-Link output circuits. It offers robust protection features including short circuit and reverse polarity protection, and is housed in a durable plastic casing with IP67 protection class, making it suitable for harsh environments. The sensor's compact dimensions are 18 mm in width, 45 mm in height, and 32 mm in depth, and it connects via an M12 5-pin connector. It is designed to withstand significant environmental challenges, including vibrations and shocks as specified by IEC standards.
- Type:
- Distance measuring
- Version:
- Time of Flight
- Measuring distance Sd:
- 150 2500 mm
- Measuring range Mr:
- 2350 mm
- Focal distance:
- 1500 mm
- Adjustment:
- Teach-in and IO-Link
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Repeat accuracy:
- ? 1200 4300 µm
- Linearity error:
- ± 10 mm
- Beam type:
- Point
- Suppression of reciprocal influence:
- Yes
- Alignment optical axis:
- < 1°
- Temperature drift:
- ± 15 mmLight source=Pulsed red laser diode
- Wave length:
- 680 nm
- Laser class:
- 1
- Response time / release time:
- < 4 ms (High Speed Mode) < 8 ms (Standard Mode) < 50 ms (Long Range Mode)
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 60 mA
- Voltage drop Vd:
- <2 VDC
- Output circuit:
- Analog 4 ... 20 mA Push-pull / IO-Link
- Load resistance:
- < (+Vs - 6 V) / 0,02 A
- Output current:
- 50 mA (push-pull)
- Switching output:
- Light operate, switchable
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 5 pin
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
