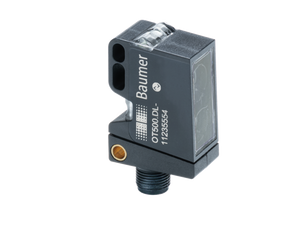

The Baumer OT500.SL-NDNVB.72F is a high-performance light barrier equipped with Time of Flight technology, ensuring precise detection with a background position range of 500 to 2500 mm and a scanning range of 85% to 80% of the specified distance. It features a pulsed red laser diode light source, operating within a laser class 1 safety standard and a wavelength of 680 nm. The device offers quick response and release times of less than 8 ms, and operates efficiently with a voltage supply range of 12 to 30 VDC. It includes multiple indicators: a green LED for power, and dual-color LEDs (yellow and red) for output status. The sensor supports dark operate and complementary output functions with an NPN output circuit. It is designed for easy installation and adjustment with qTeach and external sensing distance adjustment options. The robust rectangular housing, made from durable plastic materials like ASA and PMMA, measures 18 mm in width, 45 mm in height, and 32 mm in depth, and is equipped with an M12 5-pin connector. This device is highly durable, rated IP 67 for protection against dust and water, and can withstand extreme temperatures, vibrations, and shocks as specified by IEC standards. Ideal for a variety of industrial applications, it ensures reliable performance and safety.
- Type:
- Light barrier
- Version:
- Time of Flight
- Background position Sde:
- 500 2500 mm
- Scanning range Sa:
- 85% ... 80% Sde
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Sensing distance adjustment:
- qTeach / external
- Distance to focus:
- 1500 mm
- Suppression of reciprocal influence:
- Yes
- Beam type:
- Point
- Alignment optical axis:
- < 1°Light source=Pulsed red laser diode
- Laser class:
- 1
- Wave length:
- 680 nm
- Response time / release time:
- < 8 ms
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 60 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Dark operate, complementary
- Output circuit:
- NPN
- Output current:
- 50 mA, sum of all outputs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 5 pin
- Protection class:
- IP 67
- Operating temperature:
- -20 +50 °C
- Storage temperature:
- -40 +70 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 10 g at f = 10 - 2000 Hz, duration 150 min per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms, 10 impulses per axis and direction
