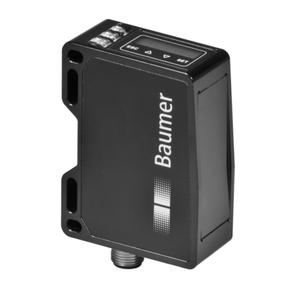

The Baumer OXE7.E15T-L82E.SIMD.7AI 11148276 is a high-precision optical measuring device designed for detecting edges, center, width, and gaps. It features a measuring range of 48 to 72 mm in width and 100 to 150 mm in distance, with a high measuring frequency of 159 to 625 Hz. The device offers exceptional resolution at 20 µm and repeat accuracy of ±10 µm. It can detect object widths as small as 0.7 mm, gaps of 1.5 mm, and steps of 0.7 mm. The linearity error ranges from ±50 to 75 µm, and it has a low temperature drift of less than 0.03% per Kelvin. Equipped with a pulsed red laser diode (656 nm wavelength, class 1 laser), it ensures safe and reliable measurements. The device features a touch display and RS485 for adjustments, and provides both analog and digital outputs. It operates within a voltage supply range of 15 to 28 VDC and includes comprehensive protection against reverse polarity and short circuits. The robust aluminum housing with glass optics is designed to withstand harsh environments, evidenced by its IP67 protection class and resistance to extreme temperatures, vibrations, and shocks. This makes it ideal for precise measurement tasks in industrial settings.
- Type:
- Measuring mode: edges, center, width, gap
- Version:
- PosCon OXE7 - for very precise measurements
- Measuring range (width):
- 48 72 mm
- Measuring range (distance):
- 100 150 mm
- Measuring frequency:
- 159 625 Hz
- Resolution:
- 20 µm
- Repeat accuracy:
- ± 10 µm
- Smallest detectable object width:
- 0.7 mm
- Smallest detectable gap:
- 1.5 mm
- Smallest detectable step:
- 0.7 mm
- Linearity error:
- ± 50 75 µm
- Temperature drift:
- < 0,03 % measured value/K
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Light source:
- Pulsed red laser diode
- Wave length:
- 656 nm
- Laser class:
- 1
- Optical peak power max.:
- 15 mW
- Adjustment:
- Touch Display, RS485
- Response time / release time:
- 3 12.4 ms
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 150 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Switching output:
- Push-pull
- Output function:
- Out 1 / Alarm
- Output current:
- 100 mA
- Baud rate:
- 115200, adjustable
- Reverse polarity protection:
- Yes, Vs to GND
- Short circuit protection:
- Yes
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 35 kLux
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 67
- Storage temperature:
- -25 +75 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis 10 g at f = 58 - 2000 Hz, 10 cycles per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 50 g / 11 ms resp. 100 g / 6 ms, 10 jolts per axis and direction 100 g / 2 ms, 5000 jolts per axis and direction
