Description

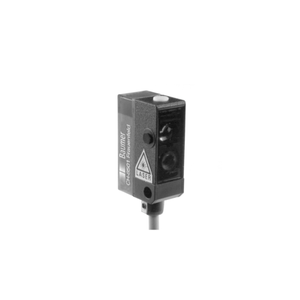

The Baumer OZDK 10N5101/S35A 10136504 is a diffuse contrast sensor with a sensing distance of 3 to 150 mm and an optimum operating distance of 20 to 40 mm. It can detect remission differences greater than 8% on grey surfaces and offers repeat accuracy of less than 0.2 mm at laser focus. The sensor features a pulsed red laser diode light source, with a wavelength of 650 nm and a laser class of 2. It has a fast response and release time of less than 0.05 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 40 mA and a maximum of 50 mA. It includes short circuit and reverse polarity protection, and has an output function for light or dark operation with an NPN output circuit. The sensor's compact design measures 10.4 mm in width, 27 mm in height, and 16.3 mm in depth, housed in a plastic (ASA) with a PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -10 to +50 °C.
