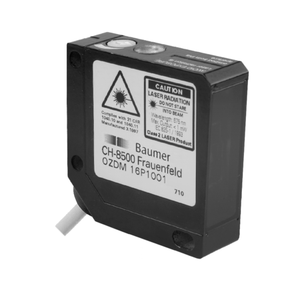

Baumer OZDM 16P1901/S14U
Baumer
The Baumer OZDM 16P1901/S14U is a high-performance sensor designed for precise distance measurement and object detection in industrial applications. Its robust construction ensures reliable operation even in harsh environments, making it ideal for automation, robotics, and quality control systems. This sensor features advanced optical technology for accurate readings and is easy to integrate into existing setups, offering a versatile solution for a wide range of measurement tasks.
- Type:
- Tolerance measuring
- Version:
- OM70 laser line basic
- Measuring distance Sd:
- 30 70 mm
- Measuring range Mr:
- 40 mm
- Sweet spot:
- 65 mm
- Adjustment:
- Touch Display, RS485
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Resolution:
- 0.7 1 µm
- Repeat accuracy:
- 0.1 0.3 µm
- Linearity error:
- ± 0.06 % Mr
- Beam type:
- Line
- Temperature drift:
- 0,01 % Sde/K
- Hysteresis digital output:
- AdjustableLight source=Pulsed red laser diode
- Wave length:
- 660 nm
- Laser class:
- 1
- Response delay:
- 0.8 ms
- Measuring frequency:
- 2500 Hz
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 75 mA
- Output circuit:
- Analog and RS 485
- Output signal:
- 4 ... 20 mA / 0 ... 10 VDC
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin
- Weight:
- 130 g
- Ambient light immunity:
- < 28 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1 mm p-p at f = 10 - 55 Hz, duration 5 min per axis 30 min endurance at f = 55 Hz per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
- Datasheet:
- View
- Operating Manual:
- View
