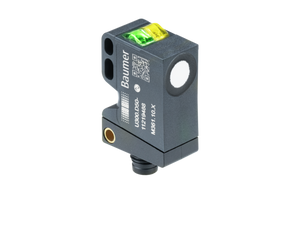

The Baumer U300.D50-DPMJ.72CU is an ultrasonic sensor with a scanning range of 15 to 500 mm, featuring IO-Link dual channel technology for enhanced communication. It offers high precision with a repeat accuracy of 0.5 mm and resolution under 0.3 mm. The sensor's response time is less than 40 ms, and it includes temperature and power-up drift compensation. It operates at a sonic frequency of 290 kHz and can be adjusted via qTeach, line-Teach, or IO-Link. Visual feedback is provided by yellow and green LEDs. The sensor supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 35 mA. Output options include 0 to 10 V or 10 to 0 V signals, with a maximum output current of 100 mA. It features short circuit and reverse polarity protection, housed in a durable plastic casing with dimensions of 12.9 x 32.2 x 23 mm. The sensor is designed to operate in temperatures ranging from -25 to +65 °C and is IP 67 rated for dust and water resistance. Connections are made via a 4-pin, 2-meter cable.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 40 ms
- Response time ton/toff min:
- < 16 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Voltage output
- Baud rate:
- 38.4 kBaud (COM 2)
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Output current:
- 100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 12.9 mm
- Height / length:
- 32.2 mm
- Depth:
- 23 mm
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
