Description

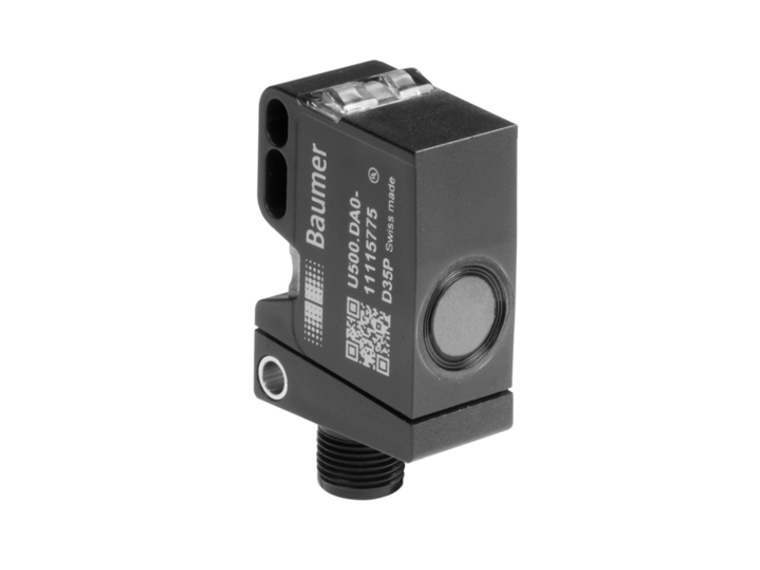

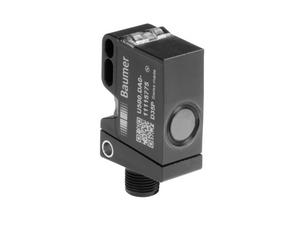

The Baumer U500.DA0.2-UA1B.72F 11200629 is a high-precision ultrasonic sensor with a scanning range of 20 to 1000 mm, offering repeat accuracy of 0.5 mm and resolution under 0.3 mm. It features a quick response and release time of less than 40 ms, and is equipped with temperature and power-up drift compensation. The sensor operates at a sonic frequency of 200 kHz and can be adjusted via qTeach and line-Teach methods. It includes LED indicators for power and status, and is designed with a rectangular, durable plastic housing. The sensor supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 35 mA. It provides a voltage output signal of 0 to 10 V or 10 to 0 V, with short circuit and reverse polarity protection. Dimensions are 18 mm in width, 45 mm in length, and 32 mm in depth, with an M12 5-pin connector for connectivity. It operates effectively in temperatures ranging from -25 to +65 °C and is IP 67 rated for protection against dust and water ingress.
