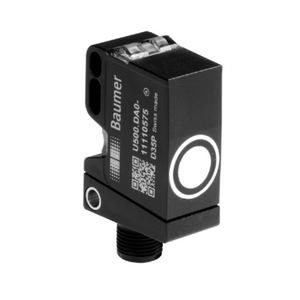

The Baumer U500.DA0-IA1B.72O 11135756 is a high-precision ultrasonic sensor with a scanning range of 100 to 1000 mm. It features repeat accuracy of 0.5 mm and resolution under 0.3 mm, ensuring precise measurements. The sensor has a quick response and release time of less than 80 ms each, with minimal temperature and power-up drifts. It operates at a sonic frequency of 220 kHz and includes qTeach for easy adjustment. Visual feedback is provided by yellow and green LED indicators. The sensor supports a voltage supply range of 12 to 30 VDC and has a typical current consumption of 38 mA. It offers both current output signals (4 to 20 mA / 20 to 4 mA) and includes short circuit and reverse polarity protection. The rectangular housing is made from durable plastic materials (ASA, PMMA), measuring 18 mm in width, 45 mm in height, and 32 mm in depth. It connects via an M12 connector and operates within a temperature range of -25 to +60 °C. The sensor is IP 67 rated, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 100 1000 mm
- Scanning range close limit Sdc:
- 100 1000 mm
- Scanning range far limit Sde:
- 100 1000 mm
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton:
- < 80 ms
- Release time toff:
- < 80 ms
- Temperature drift:
- > 50 mm < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 220 kHz
- Adjustment:
- qTeach
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 38 mA
- Output circuit:
- Current output
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +60 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
