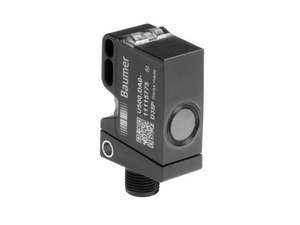

The Baumer U500.PA0.2-GP2J.72F 11200633 is a high-performance ultrasonic proximity switch with a scanning range of 20 to 1000 mm. It features IO-Link dual channel and multiplex capabilities, ensuring precise and reliable object detection with a repeat accuracy of 0.5 mm and a typical hysteresis of 4% Sde. The device is equipped with a push-pull output circuit and can handle an output current of up to 100 mA. It operates within a voltage supply range of 12 to 30 VDC and has a low current consumption of 35 mA. The sensor is designed with a robust plastic housing and a PEEK-coated active face, making it suitable for harsh environments with operating temperatures ranging from -25 to +65 °C. It also offers short circuit and reverse polarity protection, ensuring durability and reliability. The sensor's dimensions are 18 mm in width, 45 mm in length, and 32 mm in depth, and it connects via an M12 5-pin connector. This device is ideal for applications requiring precise distance measurement and object detection in industrial settings.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 20 1000 mm
- Scanning range far limit Sde:
- 20 1000 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Power-up drift:
- Compensated after 15 min.
- Response time ton:
- < 40 ms
- Release time toff:
- < 40 ms
- Sonic frequency:
- 200 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Output indicator:
- Yellow LED / red LED
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 35 mA
- Output circuit:
- Push-pull
- Output current:
- 100 mA
- Voltage drop Vd:
- <3.5 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Coating active face:
- PEEK
- Width / diameter:
- 18 mm
- Height / length:
- 45 mm
- Depth:
- 32 mm
- Connection types:
- Connector M12 5 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -40 +75 °C
- Protection class:
- IP 67
