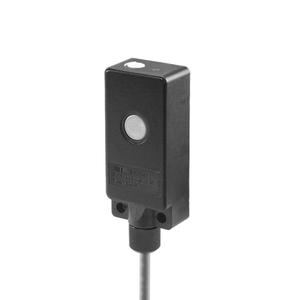

The Baumer UEDK 30N5103/S14 10130585 is a high-performance receiver with a scanning range of up to 700 mm. It features a potentiometer for easy adjustment and a target indication flashing for alignment aid. The device ensures precise operation with a repeat accuracy of 3 mm and a response time of less than 5 ms. It is equipped with a green LED output indicator and supports a voltage supply range of 12 to 30 VDC. The receiver offers robust protection features including short circuit and reverse polarity protection. Its compact, rectangular design is made from durable polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 18.5 mm in depth. The connection is facilitated via an M12 connector, and it operates efficiently within a temperature range of 0 to +60 °C. This model is IP 67 certified, ensuring protection against dust and water ingress, making it suitable for a variety of industrial applications.
- Emitter / receiver:
- Receiver
- Scanning range Sd:
- 0 700 mm
- Scanning range far limit Sde:
- 0 700 mm
- Object size (at Sd:
- 50 mm)=> 2 cm²
- Hysteresis typ.:
- 5 mm
- Repeat accuracy:
- 3 mm
- Response time ton:
- < 5 ms
- Release time toff:
- < 5 ms
- Adjustment:
- Potentiometer
- Alignment aid:
- Target indication flashing
- Output indicator:
- LED green
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 30 mA
- Output circuit:
- NPN complementary
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 18.5 mm
- Connection types:
- Connector M12
- Operating temperature:
- 0 +60 °C
- Protection class:
- IP 67
- Datasheet:
- View;QN-QUOTE-REQUEST=true
