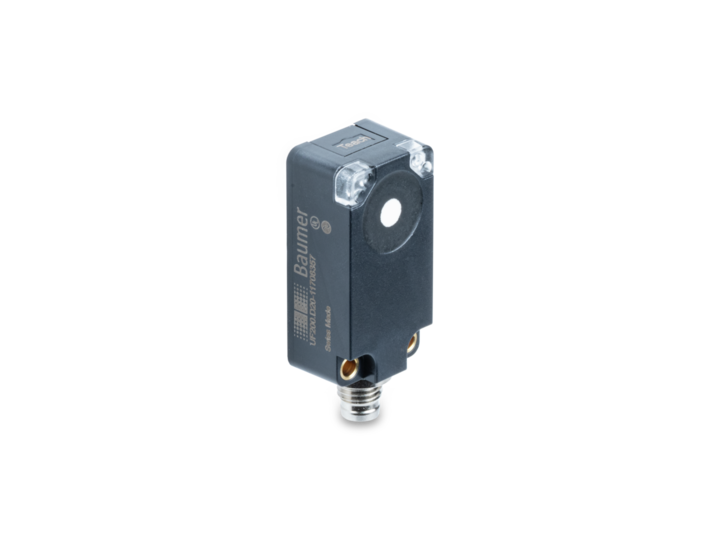

Baumer UF200.D25-UA1B.72N
Baumer
$422.80
The Baumer UF200.D25-UA1B.72N is a high-performance ultrasonic sensor with a scanning range of 10 to 250 mm. It features a typical hysteresis of 4% at the far limit, repeat accuracy of 0.5 mm, and resolution under 0.3 mm. The sensor's response time is less than 25 ms, with a minimum possible time of 10 ms. It operates at a sonic frequency of 370 kHz and includes temperature and power-up drift compensation. The sensor offers both voltage output signals (0 to 10 V and 10 to 0 V) and is equipped with short circuit and reverse polarity protection. Housed in a durable plastic casing (ASA, PMMA), it measures 20.5 mm in width, 41 mm in length, and 15 mm in depth. The sensor operates effectively within a temperature range of -25 to +65 °C and is IP 67 rated for protection against dust and water ingress. It connects via an M8 4-pin connector, ensuring easy integration into various applications.
- Scanning range Sd:
- 10 250 mm
- Scanning range close limit Sdc:
- 10 250 mm
- Scanning range far limit Sde:
- 10 250 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 25 ms
- Response time ton/toff min:
- < 10 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 370 kHz
- Adjustment:
- qTeach, line-Teach
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 10 mA
- Output circuit:
- Voltage output
- Output signal:
- 0 ... 10 V / 10 ... 0 V
- Load resistance:
- > 10 kOhm
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
