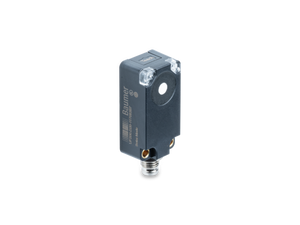

The Baumer UF200.D50-IA1B.72N is an ultrasonic sensor designed for precise distance measurement with a scanning range of 15 to 500 mm. It features a high resolution of less than 0.3 mm and repeat accuracy of 0.5 mm, ensuring reliable and consistent performance. The sensor has a quick response time of less than 40 ms and minimal temperature and power-up drift, which are compensated after 15 minutes. It operates at a sonic frequency of 290 kHz and can be adjusted via qTeach and line-Teach methods. The device includes LED indicators for power and operation status and offers robust protection features such as short circuit and reverse polarity protection. Housed in a durable plastic casing, it is suitable for harsh environments with an operating temperature range of -25 to +65 °C and a high protection class of IP 67. The sensor is powered by a 12 to 30 VDC supply and has a low current consumption of 11 mA. It supports a 4-20 mA current output signal and can be easily connected using an M8 4-pin connector.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 40 ms
- Response time ton/toff min:
- < 16 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, line-Teach
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 11 mA
- Output circuit:
- Current output
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Load resistance:
- < (+Vs - 10V) / 0,02 A
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
