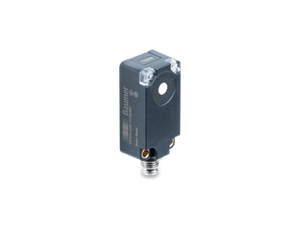

Baumer UF200.D50-IAMO.72N
Baumer
$422.80
The Baumer UF200.D50-IAMO.72N is an ultrasonic sensor with a scanning range of 15 to 500 mm, featuring IO-Link dual channel technology for enhanced communication and configuration flexibility. It offers a repeat accuracy of 0.5 mm and a resolution of less than 0.3 mm, ensuring precise measurements. The sensor's response time is less than 40 ms, with a minimum possible time of 16 ms, and it includes temperature and power-up drift compensation. Operating at a sonic frequency of 290 kHz, it uses qTeach and IO-Link for easy adjustment. Visual indicators include a yellow LED for status and a green LED for power. The sensor is designed with a rectangular plastic housing, measures 20.5 mm in width, 41 mm in length, and 15 mm in depth, and connects via an M8 4-pin connector. It operates within a temperature range of -25 to +65 °C and is IP67 rated for dust and water resistance. The sensor supports a voltage supply range of 12 to 30 VDC and features short circuit and reverse polarity protection.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Resolution:
- < 0.3 mm
- Response time ton/toff standard:
- < 40 ms
- Response time ton/toff min:
- < 16 ms
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 13 mA
- Output circuit:
- Current output
- Baud rate:
- 38.4 kBaud (COM 2)
- Output signal:
- 4 ... 20 mA / 20 ... 4 mA
- Load resistance:
- < (+Vs - 10V) / 0,02 A
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
