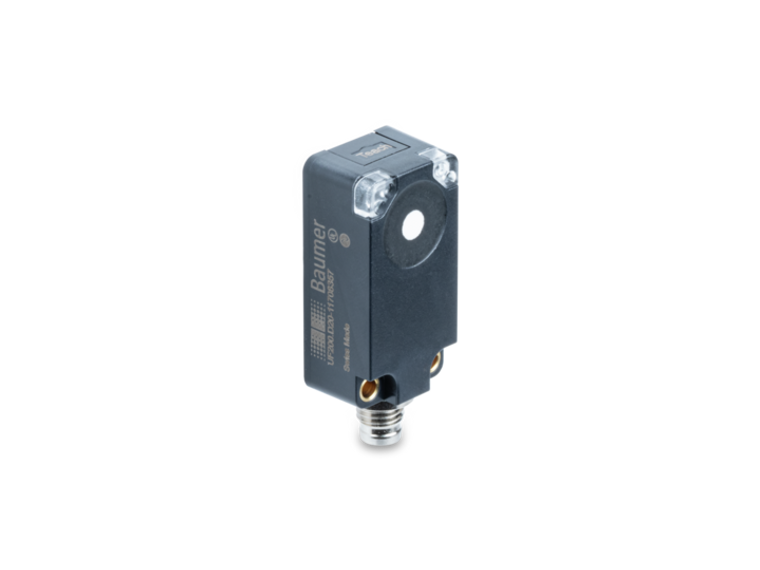

The Baumer UF200.P25-GP1J.72N is an ultrasonic sensor with a scanning range of 10 to 250 mm, featuring IO-Link and multiplex capabilities. It offers a repeat accuracy of 0.5 mm and a temperature drift of less than 2% of the distance to the target. The sensor has a quick response time of less than 10 ms, operates at a sonic frequency of 370 kHz, and includes various adjustment options such as qTeach, line-Teach, and IO-Link. It is equipped with LED indicators for power and operation status, and has a robust rectangular plastic housing. The sensor supports a voltage supply range of 12 to 30 VDC, consumes about 12 mA, and includes safety features like short circuit and reverse polarity protection. Suitable for operating temperatures from -25 to +65 °C, it is designed for durability with an IP 67 protection class.
- Scanning range Sd:
- 10 250 mm
- Scanning range close limit Sdc:
- 10 250 mm
- Scanning range far limit Sde:
- 10 250 mm
- Version:
- IO-Link Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % of distance to target Sde
- Response time ton/toff min:
- < 10 ms
- Response time ton/toff standard:
- < 25 ms
- Sonic frequency:
- 370 kHz
- Adjustment:
- qTeach, line-Teach, IO-Link
- Light indicator:
- LED yellow
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 12 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
