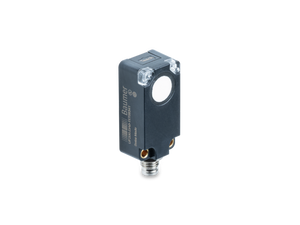

The Baumer UF200.P25-GP2J.72N is an ultrasonic sensor with a scanning range of 10 to 250 mm. It features IO-Link dual channel multiplex version, a typical hysteresis of 4% Sde, and repeat accuracy of 0.5 mm. The sensor has a temperature drift of less than 2% of the distance to the target Sde and a response time of less than 10 ms minimum and less than 25 ms standard. Operating at a sonic frequency of 370 kHz, it offers adjustment options via qTeach and IO-Link, and includes yellow and red LED indicators for status and green LED for power. The sensor's alignment measuring axis is less than 2°, and it operates on a voltage supply range of 12 to 30 VDC with a typical current consumption of 16 mA. It features a push-pull output circuit with an output current of less than 100 mA and a voltage drop of less than 3 VDC. The sensor is equipped with short circuit and reverse polarity protection, housed in a rectangular plastic body (ASA, PMMA), and measures 20.5 mm in width, 41 mm in height, and 15 mm in depth. It connects via an M8 4-pin connector and operates within a temperature range of -25 to +65 °C, with a storage temperature range of -25 to +75 °C. The sensor is IP 67 rated for protection against dust and water ingress.
- Scanning range Sd:
- 10 250 mm
- Scanning range close limit Sdc:
- 10 250 mm
- Scanning range far limit Sde:
- 10 250 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % of distance to target Sde
- Response time ton/toff min:
- < 10 ms
- Response time ton/toff standard:
- < 25 ms
- Sonic frequency:
- 370 kHz
- Adjustment:
- qTeach, IO-Link
- Light indicator:
- Yellow LED / red LED
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 16 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
