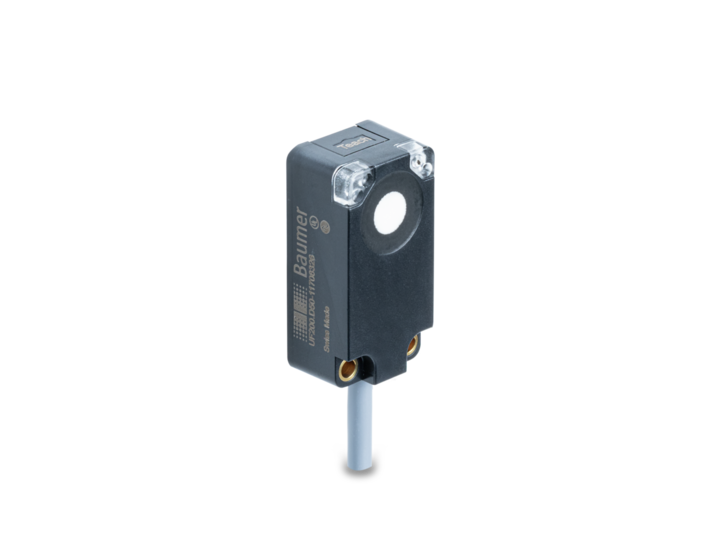

The Baumer UF200.P50-GP2J.72CU is an advanced ultrasonic sensor with a scanning range of 15 to 500 mm. It features IO-Link dual channel multiplex version, ensuring high precision with a repeat accuracy of 0.5 mm and a typical hysteresis of 4% Sde. The sensor is designed to minimize temperature and power-up drifts, with compensation achieved within 15 minutes and temperature drift less than 2% of the distance to the target. It operates with a quick response time of less than 16 ms and a standard time of less than 40 ms. The device emits at a sonic frequency of 290 kHz and can be adjusted via qTeach and IO-Link. Visual indicators include yellow and red LEDs for operational status and a green LED for power. It supports a voltage supply range of 12 to 30 VDC and consumes a typical current of 16 mA. The output circuit is push-pull with an output current of less than 100 mA. Safety features include short circuit and reverse polarity protection. The sensor is housed in a durable plastic (ASA, PMMA) rectangular body measuring 20.5 mm in width, 41 mm in height, and 15 mm in depth, and it connects via a 4-pin, 2-meter cable. Suitable for operating temperatures between -25 to +65 °C and storage temperatures from -25 to +75 °C, it is IP 67 certified, ensuring protection against dust and water ingress.
- Scanning range Sd:
- 15 500 mm
- Scanning range close limit Sdc:
- 15 500 mm
- Scanning range far limit Sde:
- 15 500 mm
- Version:
- IO-Link dual channel Multiplex version
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % of distance to target Sde
- Power-up drift:
- Compensated after 15 min.
- Response time ton/toff min:
- < 16 ms
- Response time ton/toff standard:
- < 40 ms
- Sonic frequency:
- 290 kHz
- Adjustment:
- qTeach, IO-Link
- Light indicator:
- Yellow LED / red LED
- Power on indication:
- LED green
- Alignment measuring axis:
- < 2°
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption typ.:
- 16 mA
- Output circuit:
- Push-pull
- Output current:
- <100 mA
- Voltage drop Vd:
- <3 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, PMMA)
- Width / diameter:
- 20.5 mm
- Height / length:
- 41 mm
- Depth:
- 15 mm
- Connection types:
- Cable 4 pin, 2 m
- Operating temperature:
- -25 +65 °C
- Storage temperature:
- -25 +75 °C
- Protection class:
- IP 67
- Datasheet:
- View
